Top Hammer Drilling Tools: How Proper Matching Lowers Cost Per Meter

Learn how proper top hammer tool matching reduces cost per meter, prevents tool failures, and improves drilling productivity.
内容 隐藏

Top hammer drilling performance depends on how the shank adapter, drill rod, and rock drill bit work together as rock drilling tools. The key is not simply matching individual dimensions, but controlling thread pre-tightening, impact-face contact, stress-wave transmission, torque transfer, flushing, and bending loads across the complete tool combination. A small mismatch at the shank adapter can increase stress concentration at the rod connection, while poor rod-to-bit alignment can increase bending loads and accelerate premature button wear. Correctly matched rock drilling tools help reduce rod breakage, thread damage, premature button pop-out, drilling downtime, and ultimately cost per meter.

Why Top Hammer Drilling Tools Must Be Properly Matched

Top Hammer Drilling Tools

A shank adapter, drill rod, or rock drill bit can meet its individual dimensional and material requirements and still perform poorly when combined with incompatible rock drilling tools. In top hammer drilling, impact energy, rotation, torque, flushing, and bending loads pass through multiple connections, so the condition of one interface directly affects the loading and wear of the others.

A Drilling Tool Combination Works Through Connected Interfaces

The basic load path is:

Rock Drill → Shank Adapter → Drill Rod → Rock Drill Bit → Rock

The important point is not the individual component alone, but what happens at each connection. Thread fit, pre-tightening, impact-face contact, alignment, and connection condition determine how efficiently impact energy and rotation are transferred through the rock drilling tools. A dimensional match does not necessarily mean that the actual contact and loading conditions are correct in the field.

Where Small Mismatches Become Large Field Problems

A small mismatch at one interface can gradually develop into several failures:

Interface mismatch

Uneven contact/stress concentration

Thread wear or increased bending load

Drill rod damage

Rock drill bit instability

Premature button wear/button pop-out

Lower penetration rate + drilling downtime

For example, excessive play at a worn connection can cause repeated micro-movement under impact loading. This increases localized stress and accelerates thread wear. As the connection becomes less stable, bending loads on the drill rod and rock drill bit can increase, eventually affecting bit stability and button loading.

This is why replacing only the failed component does not always solve the problem. If the underlying mismatch remains, the next rock drilling tool can fail for the same reason.

Shank Adapter to Drill Rod: Where the Failure Chain Can Start

The shank adapter-to-drill rod connection is one of the first places where a mismatch can turn into repeated impact damage. Two components may appear to connect correctly, but long-term top hammer drilling performance depends on thread geometry, contact condition, pre-tightening, and how the connection handles repeated impact and rotation.

Thread Compatibility Is More Than Thread Size

Matching the thread size alone does not guarantee a suitable connection for rock drilling tools. Thread type, thread profile, thread dimensions, connection condition, thread pre-tightening, and actual contact area all affect how the shank adapter and drill rod carry impact and rotational loads.

A connection that can be screwed together may still have poor load distribution. If the thread profiles or dimensions are not properly matched, contact can become concentrated on limited areas of the thread instead of being distributed as intended. Under repeated impact loading, this can accelerate thread wear, create local stress concentration, and introduce movement at the connection.

This is why thread compatibility should be checked as a complete connection, not simply by asking whether the thread codes appear to match. The practical question is: Does the connection maintain stable contact and load transfer under repeated impact and rotation?

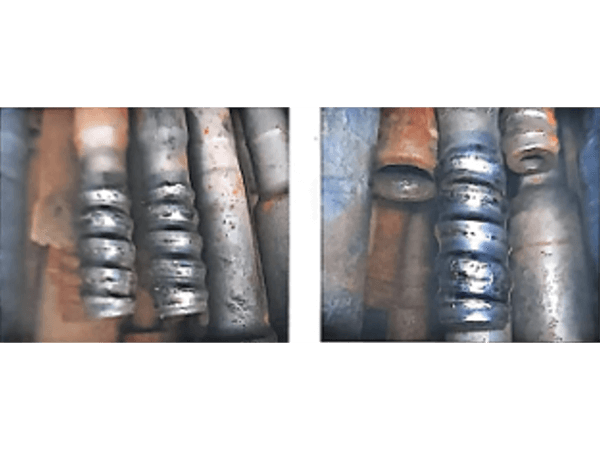

Poor Thread Pre-Tightening Creates Localized Stress

Insufficient thread pre-tightening allows relative movement between the shank adapter and drill rod during drilling. Under repeated impact loading, this movement can develop into a chain of fretting and wear:

Insufficient pre-tightening

Connection movement

Repeated impact loading

Thread fretting and wear

Heat generation

Thread damage

Increased play

Higher rod failure risk

Once play develops at the connection, impact loading is no longer distributed as intended. The resulting movement can further damage the threads and increase dynamic loading on the drill rod.

However, over-tightening is not the solution. Excessive tightening can also introduce unnecessary stress into the connection and make assembly or removal difficult. The objective is controlled pre-tightening that keeps the connection stable without creating excessive assembly stress.

Impact-Face Contact and Stress Concentration

The impact face must contact as intended so that impact loading is transferred through the correct contact area. Uneven or eccentric contact can concentrate impact energy on a smaller region, increasing local stress and accelerating damage at the connection.

The field problem is therefore not simply whether there is “poor energy transfer.” If the impact face is not contacting as intended, the more useful question is where the impact load is being concentrated.

A small eccentricity or uneven contact area can produce localized impact loading rather than uniform contact. Repeated loading in the same area can accelerate surface damage, affect thread condition, and increase bending or vibration in the connected drill rod.

When abnormal wear appears at the shank adapter or drill rod connection, inspect the impact-face contact pattern, thread condition, alignment, and connection play together. Replacing one component without checking the mating surface can leave the original loading problem in place.

Drill Rod to Rock Drill Bit: How the Connection Affects Drilling Stability

Problems at the rod-to-bit interface can affect more than the connection itself. Poor fit, thread wear, looseness, or misalignment can make bit rotation and loading less stable, which may contribute to uneven button wear, premature button damage, vibration, and a gradual drop in penetration rate.

Thread Connection Condition

The rod-to-bit connection needs stable contact throughout drilling. Connection fit, thread wear, looseness, alignment, and the actual contact condition all influence how the rock drill bit responds to impact and rotation.

As the connection wears, clearance can develop between the mating threads. The resulting movement may allow the bit to shift slightly under repeated impact or rotate less consistently. Misalignment can further increase uneven loading on the bit face and gauge button area.

This does not mean that every worn connection will immediately cause button failure. The practical concern is whether the connection has developed enough looseness, wear, or misalignment to affect bit stability under actual drilling conditions.

Torque Transfer and Rotational Stability

During drilling, torque is transferred through the rod to the bit and then into the rock:

Torque → Drill Rod → Rock Drill Bit → Rock

A stable connection allows the bit to rotate consistently while the buttons engage the rock. If the interface develops excessive clearance or abnormal wear, torque transmission can become less stable. The bit may rotate unevenly, increasing variation in button loading across the bit face.

Under these conditions, some buttons may experience higher contact loads while others contribute less effectively. Depending on the rock, drilling parameters, bit condition, and degree of connection wear, this can contribute to uneven button wear, accelerated gauge button wear, vibration, or reduced penetration.

Stress-Wave Reflection at the Rod-to-Bit Interface

When an impact stress wave reaches the rod-to-bit interface, part of the wave is transmitted into the bit, and part is reflected toward the rod. The resulting loading pattern is influenced by the condition and contact characteristics of the interface.

For field drilling, the important point is not to treat stress-wave reflection as an isolated theoretical problem. Changes in contact condition, alignment, or connection stability can affect how impact loading is distributed across the bit.

This can contribute to uneven loading, localized button stress, premature button wear, button pop-out, or bit damage, particularly when combined with unfavorable rock conditions, excessive vibration, improper drilling parameters, or an already worn connection.

Therefore, when a bit shows abnormal button wear or premature damage, the inspection should not stop at the bit face. Check the rod-to-bit connection condition, thread wear, looseness, alignment, and contact surfaces to determine whether the connection may be contributing to the loading problem.

How Bending Stress Affects the Entire Top Hammer Drilling Tools

Bending stress becomes a major concern when the drilling tools are not properly aligned with the borehole. Hole deviation, worn connections, excessive clearance, poor collaring, or unstable feed force can make the drill rod carry uneven loads, increasing bending moment and accelerating wear at the rod, connections, and rock drill bit.

Misalignment Increases Bending Moment

Misalignment between the rock drill, shank adapter, drill rod, and borehole can increase the bending load carried by the drilling tools. The basic relationship is:

Misalignment → Bending Moment → Uneven Rod Loading

Several field conditions can contribute to this problem. Hole deviation changes the direction of the tool relative to the intended drilling axis. Tool misalignment can create an offset between connected components. Excessive clearance at a worn connection allows additional movement under impact and rotation. Poor collaring can make the tool difficult to stabilize at the beginning of the hole, while an unstable feed force can push the tools against the borehole wall instead of maintaining a controlled drilling axis.

These conditions do not always cause immediate rod failure. The concern is repeated uneven loading. When one section of the drill rod is subjected to higher bending stress than the rest, localized wear, thread damage, fatigue cracking, or connection problems can develop over time.

For field diagnosis, do not look only at the broken or worn component. Check the hole condition, rod alignment, connection clearance, feed stability, and wear pattern together.

Long Drill Rods Amplify Bending Problems

The longer the drill rod, the more sensitive the tool combination can become to alignment, feed force, hole deviation, and connection wear. A small deviation or clearance that may have limited influence over a short tool length can produce greater lateral movement or bending as the effective unsupported length increases.

This is why long-hole drilling requires closer control of the drilling axis and operating parameters. If the hole begins to deviate, the drill rod may contact the borehole wall more frequently. If a connection is already worn, the additional movement can make the rod more sensitive to bending loads. Excessive or unstable feed force can further increase side loading.

The practical point is not that a longer drill rod has a fixed reduction in service life. There is no single service-life figure that applies to all drilling conditions. Rock formation, hole diameter, rod geometry, drilling method, equipment setup, feed force, rotation, connection condition, and operator control can all change the actual loading.

For this reason, longer drilling applications should be evaluated based on alignment control, hole deviation, connection condition, and drilling behavior, rather than applying a universal service-life estimate.

Signs of Excessive Bending Stress in the Field

Excessive bending stress often appears as a combination of symptoms rather than one isolated failure. Common field signs include:

  • Abnormal rod wear: Wear is concentrated on one side or at specific sections of the drill rod rather than being relatively uniform.
  • Localized thread wear: One area of the thread shows noticeably heavier wear, indicating uneven loading or movement at the connection.
  • Rod breakage: A rod may fail near a connection or another high-stress location, particularly when bending is combined with repeated impact loading.
  • Difficult connection: Worn or misaligned threads may become harder to make up, loosen repeatedly, or show abnormal resistance during connection.
  • Unusual vibration: Increased vibration can indicate unstable tool alignment, excessive clearance, or changing contact with the borehole wall.
  • Gauge button wear: Uneven gauge button wear can indicate that the rock drill bit is not rotating or loading consistently within the hole.
  • Declining penetration rate: As bending, vibration, and connection instability increase, drilling efficiency may gradually decrease.

When several of these symptoms appear together, replacing the drill rod alone may not address the underlying problem. Inspect the shank adapter, drill rod connections, rock drill bit, hole alignment, and drilling parameters to determine where the additional bending load is entering the tool.

The Chain-Reaction Failure: From One Mismatch to Multiple Tool Failures

A top hammer tool failure is often the result of a chain reaction rather than one isolated defect. A small problem such as thread wear or poor connection contact can develop into micro-movement, localized stress, rod damage, unstable bit loading, and eventually higher cost per meter.

Stage 1 — Interface Wear

The failure chain often starts with wear at a connection interface. Thread wear, damaged contact surfaces, excessive clearance, or loss of proper connection fit can reduce the stability of the shank adapter–rod or rod–bit connection.

At this stage, the drilling tools may still appear usable. However, the worn interface can change how impact, torque, and bending loads are distributed during drilling.

Thread wear → Reduced connection stability → Higher risk of movement under load

The important field question is not simply whether the thread is worn, but whether the wear has changed the connection condition enough to affect drilling stability.

Stage 2 — Connection Movement

Once clearance develops at a worn connection, repeated impact can produce micro-movement between the mating components.

This movement may be small during a static inspection but become significant under continuous impact and rotation. Repeated movement can further wear the threads and contact surfaces, while also allowing the connected tools to move slightly out of their intended alignment.

Interface wear → Micro-movement under repeated impact → Increasing connection instability

This is why a connection that can still be assembled does not necessarily mean that it remains in good operating condition.

Stage 3 — Increased Stress and Heat

Micro-movement can increase fretting and localized loading at the connection. Instead of distributing the load evenly across the intended contact area, repeated movement can concentrate stress at specific portions of the thread or contact surface.

Fretting also generates friction and heat. As wear progresses, the contact condition can deteriorate further, creating a feedback loop:

Micro-movement → Fretting → Localized loading + heat → More interface wear

The actual severity depends on the connection condition, drilling parameters, alignment, lubrication, impact loading, and rock conditions. The key concern is that a relatively small interface problem can progressively increase the mechanical load on adjacent components.

Stage 4 — Rod Damage

As localized loading and bending stress increase, the drill rod may become the next failure point. Depending on the loading pattern and operating conditions, this can contribute to crack initiation, bending fatigue, or thread failure.

Typical progression can be:

Localized stress → Repeated cyclic loading → Crack initiation → Rod damage or failure

Rod damage is not always caused by a single overload event. Repeated impact combined with bending, misalignment, connection movement, or thread damage can gradually reduce the margin before failure.

When a rod breaks, inspect the break location, thread condition, adjacent connections, alignment, and drilling parameters rather than treating the broken rod as an isolated problem.

Stage 5 — Bit Performance Deteriorates

Once the rod-to-bit connection becomes unstable or the tool alignment deteriorates, loading on the rock drill bit can become less uniform.

Uneven loading can increase stress on individual buttons and contribute to premature button wear, button damage, or button pop-out. Gauge button wear and vibration may also become more pronounced when the bit is no longer rotating and loading consistently.

Connection instability → Uneven bit loading → Premature button wear/button pop-out

This does not mean that every button failure originates from the rod connection. Rock abrasiveness, bit design, drilling parameters, flushing conditions, and impact loading can also affect button performance. The connection should therefore be treated as one part of the failure investigation rather than automatically identified as the sole cause.

Stage 6 — Cost Per Meter Rises

The final effect is not limited to the cost of the failed component. Once tool instability reduces drilling performance, the operation can incur several costs at the same time:

Lower penetration rate + Tool replacement + Drilling downtime = Higher cost per meter

A worn thread may initially look like a small maintenance issue. If it leads to connection movement, rod damage, premature bit wear, and unplanned tool changes, the total cost can be much higher than the original component replacement cost.

This is why cost per meter should be evaluated across the complete set of rock drilling tools, not by comparing the purchase price of a single bit, rod, or shank adapter.

The practical objective is to stop the chain as early as possible:

Interface wear → Connection movement → Increased stress and heat → Rod damage → Bit performance deterioration → Higher cost per meter

Early inspection of connection condition, alignment, thread wear, and tool loading can help prevent a small mismatch from developing into multiple tool failures.

Top Hammer Drilling Tools Diagnostic Matrix

Use the symptoms observed in the field to identify possible tool-matching or connection problems. The purpose is not to diagnose a failure from one symptom alone, but to connect the field condition → possible cause → inspection point → corrective action.

Field ConditionPossible Mismatch or Connection IssueWhat to CheckCorrective Action
Threads loosen repeatedlyPoor connection fit or insufficient pre-tighteningThread condition and contact surfacesVerify compatible threads and correct tightening procedure
Localized thread wearMisalignment or uneven loadingWorn thread profile and connection alignmentReplace damaged components and check alignment
Abnormal heat at connectionExcessive friction or connection movementThread wear, lubrication, and connection conditionCorrect the connection fit and maintenance procedure
Rod breaks near connectionStress concentration or excessive bending loadBreak location, thread condition, and alignmentCheck alignment and replace damaged components
Penetration rate dropsBit wear, poor flushing, or unstable tool loadingBit buttons, flushing condition, and drilling parametersCorrect bit condition and adjust drilling parameters
Premature button wearUneven bit loading or excessive vibrationBit face, gauge button, and rod alignmentCheck bit selection, alignment, and drilling stability
Button pop-outExcessive localized loading or damaged carbide retentionButton condition and bit faceReplace the damaged bit and investigate loading conditions
Excessive vibrationMisalignment, worn connections, or unsuitable drilling parametersRod straightness and connectionsCorrect alignment and replace worn components
Frequent tool changesMismatch or recurring connection problem rather than an isolated component failureFailure pattern across the bit, rod, and shank adapterReview the complete tool combination

A useful diagnostic rule is to inspect the adjacent connection before replacing the failed component alone. For example, if a drill rod breaks near a thread, check the mating shank adapter or rock drill bit connection, alignment, and thread condition before installing another rod.

Likewise, premature button wear or pop-out should not automatically be treated as a rock drill bit problem. Check the rod-to-bit connection, tool alignment, vibration, and drilling parameters to determine whether uneven loading is contributing to the failure.

How to Match Shank Adapter, Drill Rod and Bit as a Tool Combination

Proper matching starts with the connection between the rock drill, shank adapter, drill rod, and rock drill bit. These components should be selected as a tool combination because thread compatibility, rod dimensions, bit diameter, drilling conditions, and operating parameters all affect how the tools perform together.

Match the Thread Type First

Thread compatibility should be checked across the complete connection path before selecting individual tools:

Rock Drill → Shank Adapter → Drill Rod → Rock Drill Bit

Check:

  • Rock drill connection
  • Shank adapter thread
  • Drill rod thread
  • Rock drill bit thread

Do not select the bit, rod, and shank adapter independently just because each component has a commonly used thread specification. The thread type, profile, dimensions, connection fit, and actual mating condition all need to be compatible.

For example, a drill rod and rock drill bit may have matching nominal thread specifications, but if the connection condition or mating component is incorrect, excessive clearance, uneven contact, or premature thread wear can still occur.

The practical approach is to confirm the complete thread combination first, then select the individual components around that connection.

Match Rod Diameter and Drilling Conditions

Rod diameter should be selected together with the actual drilling conditions rather than by hole diameter alone.

Consider:

  • Hole diameter
  • Rod diameter
  • Drilling depth
  • Rock condition
  • Feed force
  • Rotation
  • Flushing hole and flushing requirements

A larger hole does not automatically mean that the largest available rod should be selected. The rod needs to provide appropriate stiffness and connection strength for the drilling conditions while remaining compatible with the rock drill, shank adapter, and bit.

Drilling depth is also important. As the effective rod length increases, alignment, hole deviation, feed force, and connection wear become more significant. In harder or highly abrasive rock, the loading and wear conditions may also require a different tool combination than those used in softer formations.

Operating parameters should be considered at the same time. Excessive feed force, unsuitable rotation, poor alignment, or inadequate flushing can reduce the performance of an otherwise dimensionally compatible tool combination.

Match the Bit to the Rod and Drilling Application

Rock drill bit selection should be evaluated together with the rod size, connection, hole diameter, rock condition, and actual drilling application.

The objective is not simply to choose a bit type from a catalog. The bit must work correctly with the rod and connection while handling the impact, rotation, feed force, and rock conditions present at the job site.

Before confirming a bit, check:

  • Required hole diameter
  • Matching rod and connection
  • Rock hardness and abrasiveness
  • Drilling depth and hole condition
  • Expected penetration performance
  • Flushing conditions
  • Current wear or failure pattern, if replacing an existing bit

If a customer is replacing a bit because of premature button wear, gauge button wear, or button pop-out, the existing rod and connection should also be reviewed. A new bit cannot fully compensate for a worn connection, poor alignment, or unsuitable drilling parameters.

The most reliable approach is therefore to evaluate the bit, rod, and shank adapter together with the actual drilling conditions, rather than optimizing one component in isolation.

Field Checklist: 10 Steps Before Starting a New Drilling Job

Before starting a new drilling job, confirm the connections, tool condition, bit and rod combination, flushing, and operating parameters. A short pre-drilling check can help identify compatibility or condition problems before they become field failures.

Before Drilling

  1. Confirm rock drill and shank adapter compatibility. Check the rock drill connection and confirm that the shank adapter is designed for the specific rock drill.
  2. Confirm shank adapter and drill rod thread compatibility. Verify the thread type, profile, and connection dimensions before assembly.
  3. Check thread condition. Look for damaged, worn, deformed, contaminated, or excessively loose threads.
  4. Check impact-face condition. Inspect the impact face for abnormal wear, damage, pitting, or uneven contact.
  5. Check drill rod straightness. A bent or visibly damaged rod can increase misalignment and bending loads during drilling.
  6. Check the bit connection and bit face condition. Inspect the bit connection, carbide buttons, flushing holes, and working face before installation.
  7. Confirm the bit diameter and rod combination. Make sure the selected bit diameter, rod size, and connection are suitable for the intended hole.
  8. Check the flushing arrangement and available air or water flow. Confirm that the flushing method and available flow are appropriate for removing cuttings under the actual drilling conditions.
  9. Confirm rotation and feed settings are suitable for the tool combination. Avoid treating rotation speed and feed force as independent machine settings. They should be appropriate for the selected rock drilling tools and ground conditions.
  10. Record initial drilling performance for comparison. Record useful baseline information such as penetration rate, vibration, connection condition, flushing behavior, and initial bit condition.

During Drilling

Once drilling starts, monitor changes rather than waiting for a component to fail. Pay particular attention to:

  • Unusual vibration
  • Abnormal connection heat
  • Changes in penetration rate
  • Flushing condition
  • Thread loosening
  • Bit wear pattern

A gradual change can be more useful diagnostically than a sudden failure. For example, declining penetration combined with increasing vibration and abnormal bit wear may indicate a developing tool or drilling-condition problem.

When a Failure Occurs

Do not replace only the broken component before checking the adjacent connection.

A practical field rule is:

Broken rod → Inspect shank adapter + rod connection + bit side

rather than:

Broken rod → Replace rod → Continue drilling

The same principle applies to premature bit wear or button pop-out. Check the adjacent tool connection, alignment, and drilling parameters before assuming that the failed component alone is the root cause.

This approach helps distinguish an isolated component failure from a recurring compatibility or loading problem across the complete set of rock drilling tools.

How Proper Tool Matching Reduces Cost Per Meter

Proper matching reduces cost per meter by lowering premature tool replacement, unplanned downtime, connection repairs, and productivity losses. The real cost of rock drilling tools is determined by how long the complete tool combination performs reliably in the field, not by the purchase price of one component.

Cost Per Meter Is More Than Tool Price

A lower purchase price does not necessarily mean a lower drilling cost. When matched rock drilling tools deliver more stable drilling and fewer unplanned replacements, the total cost per meter can be lower even if the initial tool price is higher.

A practical cost view is:

Tool Cost + Replacement Cost + Labor Cost + Downtime Cost + Reduced Productivity = Actual Drilling Cost

Each part can affect the final cost per meter:

  • Tool Cost – The initial cost of shank adapters, drill rods, and rock drill bits.
  • Replacement Cost – Additional tools required because of premature wear, breakage, or connection damage.
  • Labor Cost – Labor involved in tool changes, inspections, connection repair, and troubleshooting.
  • Downtime Cost – Production time lost when tools fail unexpectedly or require unplanned replacement.
  • Reduced Productivity – Lower penetration rate, slower drilling cycles, or additional time required to complete the same meterage.

For this reason, procurement should evaluate cost per drilled meter, not only the unit price of an individual rock drilling tool.

Not sure whether your current bit, rod, and shank adapter combination is costing you more than it should?
Send us your existing tool models, thread type, and bit diameter. We can review the combination and identify potential compatibility issues.

Where Tool Mismatch Adds Hidden Cost

Tool mismatch often creates costs that are not visible on the original purchase order. A small compatibility or connection problem can lead to repeated replacement and lost drilling time.

Common hidden costs include:

  • Premature rock drill bit replacement caused by unstable loading, excessive wear, or poor connection conditions.
  • Drill rod breakage resulting in tool replacement, fishing operations, and additional downtime.
  • Shank adapter replacement when connection wear, impact-face damage, or abnormal loading develops prematurely.
  • Connection repair caused by damaged threads, excessive wear, or repeated loosening.
  • Unplanned downtime during tool changes, failure inspection, or troubleshooting.
  • Lower penetration rate when worn or poorly matched tools prevent the rock drill from maintaining stable drilling performance.

These costs can accumulate even when each failure appears relatively small. For a contractor drilling thousands of meters, repeated tool changes or a small reduction in penetration rate can have a significant effect on total drilling cost.

Tool Mismatch → Premature Wear or Failure → Tool Replacement + Downtime → Lower Productivity → Higher Cost Per Meter

Why a Matched Tool Set Can Be Easier to Manage

A complete matched tool set can simplify both procurement and field management because the interfaces between the shank adapter, drill rod, and rock drill bit are considered together rather than confirmed separately.

For procurement teams, this can reduce the work involved in checking whether individual components are compatible. Instead of independently verifying every connection, the required tool combination can be specified around the rock drill model, thread configuration, bit diameter, and drilling application.

For field teams, a matched set can also make tool management more straightforward. Replacement components are easier to identify, tool specifications are more consistent, and recurring connection problems are easier to trace when the combination is clearly defined.

A useful procurement approach is therefore:

Rock Drill → Shank Adapter → Drill Rod → Rock Drill Bit → Drilling Application

Rather than asking only, “What is the price of this bit?”, procurement teams can ask:

“What complete tool combination will give us the required hole diameter, compatibility, service life, and drilling productivity?”

That shifts the purchasing decision from individual component price toward total drilling cost and field performance.

Choosing a Top Hammer Drilling Tools Supplier

Choosing a top hammer drilling tools supplier should involve more than comparing the price of a rock drill bit or drill rod. A suitable supplier should be able to confirm component compatibility, provide consistent specifications, and support the complete tool combination required for the drilling application.

Do Not Evaluate the Supplier by Bit Price Alone

The lowest bit price may not result in the lowest drilling cost if the supplier cannot provide compatible rods, shank adapters, consistent dimensions, or replacement support.

When comparing suppliers, consider the following:

  • Compatibility Confirmation – Can the supplier verify the connection between the shank adapter, drill rod, and rock drill bit before ordering?
  • Thread Options – Can the supplier provide the required thread types for the rock drill and drilling tools?
  • Dimensional Consistency – Are critical dimensions kept consistent between replacement components and previous orders?
  • Material and Heat Treatment Information – Can the supplier provide relevant material grades and heat-treatment information when required for technical evaluation?
  • Technical Support – Can the supplier help identify possible causes when thread wear, rod breakage, abnormal bit wear, or other field problems occur?
  • Complete Tool Matching Capability – Can the supplier evaluate the shank adapter, drill rod, and rock drill bit together instead of quoting each component independently?

For procurement teams, these factors help distinguish between a supplier that simply provides individual products and one that can support the actual requirements of a top hammer drilling application.

What Information Should You Send for a Tool Recommendation?

A supplier can recommend a suitable tool combination more accurately when the basic drilling and equipment information is provided upfront.

Send the following information:

  1. Rock drill model
  2. Existing shank adapter model
  3. Drill rod thread
  4. Required rock drill bit diameter
  5. Hole diameter
  6. Rock type
  7. Drilling application — such as mining, quarrying, tunneling, or anchoring
  8. Photos of existing tools, if available

If the exact shank adapter or rod model is unknown, photos of the existing components can help identify the connection configuration and dimensions that need to be checked.

The more complete the information, the less likely it is that individual components will be selected independently and found to be incompatible after delivery.

Top Hammer Drilling Tools: Bit, Rod and Shank Adapter FAQs

Can I use any drill rod with the same thread size?

No. The same nominal thread size does not necessarily mean two drill rods and mating components are fully compatible. Thread type, profile, dimensions, connection condition, and the intended rock drill and bit configuration should all be checked before use.

What happens if the shank adapter and drill rod are poorly matched?

A poor match can result in uneven contact, connection movement, thread wear, or abnormal loading during drilling. Over time, this can contribute to connection damage, rod breakage, vibration, and unplanned tool replacement.

Why does a drill rod break near the thread?

A drill rod can break near the thread when the connection area is exposed to excessive stress concentration, bending load, repeated impact loading, or thread wear. Hole deviation, misalignment, insufficient or excessive connection tightening, and worn mating components should also be checked before assuming the rod itself is the only cause.

Can a worn drill rod cause premature bit wear?

Yes. A worn or damaged drill rod can affect alignment and rotational stability, which may contribute to uneven loading on the rock drill bit. If a bit shows premature button wear, gauge button wear, or button pop-out, inspect the rod, connection condition, alignment, and drilling parameters rather than replacing the bit alone.

How do I know if my drilling tools are properly matched?

Start by checking: Rock Drill → Shank Adapter → Drill Rod → Rock Drill Bit. Confirm thread compatibility, dimensions, connection condition, bit diameter, rod configuration, and suitability for the drilling application. Stable penetration, normal wear patterns, and the absence of repeated connection failures are also useful field indicators.

What information should I provide when ordering top hammer drilling tools?

Provide the rock drill model, existing shank adapter model, drill rod thread, required bit diameter, hole diameter, rock type, and drilling application. Photos of the existing tools are also useful, especially when the exact component model or thread specification is unknown.

Facebook
LinkedIn

Kelleg

Your trusted rock drilling tool partner.

CAN'T GET ENOUGH?

Get all latest news, exclusive deals and academy updates.

Get "Kelleg Company Profile and Product Brochure" now

  • 20.9Mb, we will send it to your email after submitting.
  • Your email information is absolutely safe, and we will not disclose it to third parties for any reason.

ASK FOR A QUICK QUOTE

We will contact you within 1 working day, please pay attention to the email suffix “@kellegco.com
