Drilling Speed vs. Rock Drill Bit Life: How to Optimize ROP and Reduce Cost per Meter

The most economical drilling speed is not the highest ROP or the longest possible rock drill bit life. It is the operating range where feed pressure, impact energy, rotation speed, and flushing match the rock and drilling system. If feed pressure is too low, the bit may lose stable contact with the rock, reducing impact efficiency and increasing vibration or heat. If it is too high, excessive loading can accelerate carbide wear, chipping, bit damage, or jamming. Rotation speed and flushing must be adjusted to the same operating conditions. No universal RPM, feed pressure, or impact setting fits every rock formation. The practical target is stable ROP, controlled bit wear, acceptable hole quality, and the lowest sustainable cost per meter.

What Is the Right Balance Between ROP and Rock Drill Bit Life?

The right drilling speed is not the highest possible ROP or the longest possible rock drill bit life. The practical target is to maintain a stable ROP and controlled bit wear while keeping the total cost per meter as low as possible.

ROP Is a Productivity Metric, Not the Final Optimization Target

High ROP does not automatically mean low drilling cost.

A higher penetration rate can reduce drilling time, but it may also increase rock drill bit consumption, energy use, tool wear, downtime, or regrinding frequency. For this reason, ROP should be evaluated together with the total cost of drilling:

Cost per Meter = Total Drilling Cost ÷ Total Meters Drilled

Depending on the drilling operation, total drilling cost may include:

• Rock drill bit consumption
• Drill rig operating time
• Energy or fuel
• Labor
• Bit changing time
• Downtime
• Regrinding
• Re-drilling
• Equipment wear

The objective is therefore not to maximize ROP alone, but to find a sustainable ROP that delivers the lowest practical cost per meter.

Bit Life Is Not the Same as Economic Bit Life

A rock drill bit can remain physically usable without being economically efficient to continue using.

Physical Bit Life refers to how long the bit can continue drilling before it reaches a practical wear or damage limit.

Economic Bit Life refers to the point at which continuing to use the bit is no longer cost-effective because penetration performance has declined or operating costs have increased.

For example, a bit may still have usable carbide buttons, but if:

• ROP is falling,
• Bit wear is increasing,
• Drilling time per meter is rising, and
• Cost per meter is increasing,

the bit may already be approaching the end of its economic life.

In field operations, the best stopping point is not necessarily when the bit can no longer drill. It is when further drilling with the same bit no longer provides a reasonable return in meters drilled per unit of total operating cost.

How Feed Pressure, Impact Energy, Rotation Speed and Flushing Work Together

Feed pressure, impact energy, rotation speed, and flushing should not be optimized independently. Their interaction determines how efficiently the rock drill bit transfers energy into the rock, removes cuttings, and maintains stable drilling.

A practical optimization model is:

Feed Pressure + Impact Energy + Rotation Speed + Flushing

↓

Bit-Rock Interaction

↓

ROP + Hole Quality + Bit Wear

↓

Cost per Meter

The objective is not to maximize any single parameter. These parameters should be adjusted as a matched operating range for the rock condition, bit design, hole diameter, and drilling equipment.

The Four-Parameter Matching Principle

Each parameter affects a different part of the drilling process:

Parameter	Primary Role	When Too Low	When Too High
Feed Pressure	Maintains bit-rock contact	Unstable impact, low penetration	Excessive loading, vibration, bit stress
Impact Energy	Breaks the rock	Poor rock-breaking efficiency	Carbide and bit-body stress
Rotation Speed	Positions the bit for the next impact	Slow cutting and lower ROP	Excessive sliding, gauge wear, heat
Flushing	Removes cuttings and cools the bit	Poor hole cleaning, abrasive wear	Excessive air/water consumption or erosion in some conditions

The optimum operating range depends on how these parameters work together. For example, increasing impact energy without sufficient feed pressure may not improve penetration as expected. Increasing rotation speed while flushing is inadequate can also increase heat, cuttings retention, and abrasive wear.

Feed Pressure — Enough to Maintain Contact, Not Enough to Overload the Bit

Feed pressure provides the force needed to keep the rock drill bit engaged with the rock during drilling. The objective is to maintain stable bit-rock contact and efficient impact transfer without applying unnecessary loading to the bit and drilling tools.

What Happens When Feed Pressure Is Too Low?

When feed pressure is insufficient, the bit may not maintain stable contact with the rock. This can lead to:

• Unstable bit-rock contact
• Inefficient impact transfer
• Bouncing or impact instability
• Increased vibration
• Localized heat generation
• Poor or inconsistent penetration

Under-feeding does not necessarily protect the bit. If the bit cannot maintain stable contact with the rock, impact energy may be used inefficiently, while repeated impact instability can increase localized stress and heat.

A practical field sign is low or unstable ROP combined with relatively low or uneven bit wear. In this situation, increasing drilling intensity slightly may improve performance, provided the bit, flushing, alignment, and rock conditions are suitable.

What Happens When Feed Pressure Is Too High?

Excessive feed pressure can force the bit into the rock beyond the loading range that the bit and drilling equipment can handle efficiently.

Possible consequences include:

• Excessive bit loading
• Carbide button chipping
• Button cracking
• Abnormal gauge wear
• Increased bit-body stress
• Higher bending loads
• Jamming risk
• Excessive vibration

However, these failures should not be attributed to feed pressure alone. Excessive feed pressure can contribute to button chipping, cracking, or button loss when combined with unsuitable impact energy, poor alignment, vibration, defective carbide, or unfavorable rock conditions.

If ROP stops improving while vibration, torque, bit wear, or component stress continues to increase, reducing feed pressure may be more effective than continuing to push for higher penetration.

Impact Energy — Match Rock-Breaking Demand With Bit Capacity

Impact energy determines how much mechanical energy is delivered to the rock during each impact. Harder or less drillable rock generally requires sufficient impact energy to achieve effective rock breaking, but simply increasing impact intensity does not guarantee a proportional increase in ROP.

Excessive impact energy can increase stress on carbide buttons, the bit body, shank components, and the rock-drilling equipment. If the bit is already showing chipping, cracking, or abnormal wear, increasing impact intensity may accelerate damage rather than improve drilling economics.

Impact energy should therefore be considered together with feed pressure and rotation speed rather than adjusted as an isolated setting.

Rotation Speed — Match Rotation to Impact and Bit Design

Rotation speed determines how the bit presents its cutting elements to the rock between impacts. The required rotation speed depends on bit diameter, button layout, rock properties, impact frequency, and drilling equipment.

If rotation is too low, the bit may not make effective use of the available impact energy, resulting in poor cutting coverage and lower drilling efficiency.

If rotation is too high, the buttons may slide excessively across the rock surface instead of producing efficient rock breaking. This can increase friction, gauge button wear, heat, and vibration.

The practical target is not maximum RPM, but the rotation range that provides effective impact coverage with controlled wear.

Flushing — Remove Cuttings Before They Reduce Drilling Efficiency

Flushing removes drilled cuttings from the hole and helps prevent them from remaining around the bit face.

Insufficient flushing can cause:

• Cuttings to accumulate around the bit
• Poor hole cleaning
• Regrinding of drilled material
• Increased abrasive wear
• Higher heat around the bit
• Reduced penetration efficiency

This means that increasing feed pressure or impact energy cannot fully compensate for inadequate flushing.

When ROP decreases despite increasing drilling parameters, check hole cleaning and flushing conditions before increasing drilling intensity further.

The Goal: A Stable Operating Window

The four parameters should ultimately be adjusted together to maintain a stable operating window.

A well-matched drilling condition typically shows:

• Stable and sustainable ROP
• Controlled carbide and gauge button wear
• Low or manageable vibration
• Consistent hole quality
• Effective cuttings removal
• No unnecessary increase in downtime or component damage

The optimum setting is therefore the point where additional drilling intensity produces less productivity gain than the additional wear, downtime, and operating cost it creates.

How Rock Hardness and Drillability Change the Optimum ROP

The optimum ROP is not determined by rock hardness alone. Compressive strength, abrasiveness, fracture structure, rock integrity, drillability, hole diameter, and bit design can all change how a rock drill bit responds to the same drilling parameters.

As a result, the same feed pressure, impact energy, and rotation speed can produce very different ROP, wear patterns, and drilling costs in different rock formations.

Hard Rock Does Not Always Mean “Use More Pressure”

Hard rock generally requires sufficient impact energy and stable bit loading to achieve effective rock breaking, but simply increasing feed pressure is not a universal solution.

Two rocks with similar hardness can behave differently because one may be highly abrasive while the other is relatively non-abrasive. A fractured formation can also require a different operating approach from a massive, intact rock even when their measured strength is similar.

When setting drilling parameters, consider:

• Compressive strength
• Abrasiveness
• Fracture structure
• Rock integrity
• Drillability
• Hole diameter
• Rock drill bit design

The practical question is not “How hard is the rock?” but “How does this rock respond to the current drilling parameters and bit design?”

Rock hardness alone does not determine the right bit. Abrasiveness, fracture structure, hole diameter, drilling conditions, and bit design should also be evaluated before selecting a rock drill bit. See our guide on [how to choose the right rock drill bit] for a more detailed selection framework.

Hard, Abrasive Rock

Hard and abrasive formations can place high mechanical and thermal demands on the rock drill bit. Increasing drilling intensity without controlling wear can produce a short-term ROP gain but a much higher tooling cost.

A more balanced approach usually focuses on:

• Controlled feed pressure
• Sufficient impact energy
• Appropriate rotation speed
• Strong and consistent flushing
• Carbide button wear control

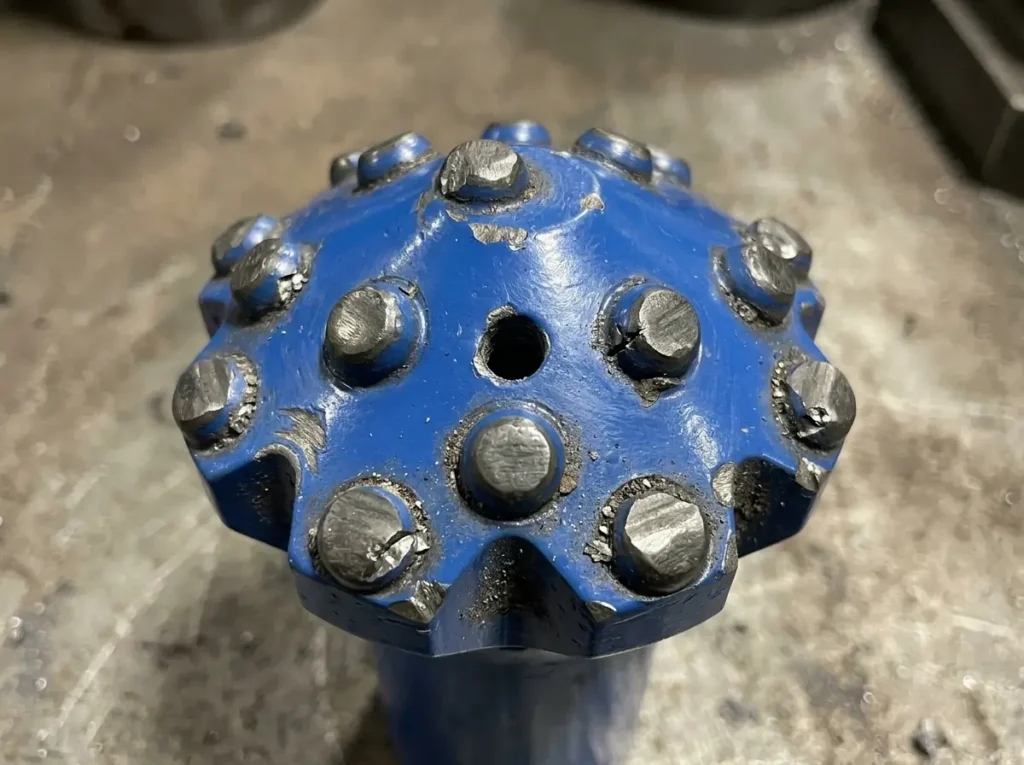

• Gauge button wear control

In these conditions, bit wear should be evaluated together with sustained ROP. A small increase in penetration is not necessarily beneficial if it causes significantly faster carbide or gauge wear.

Button heat checking, abnormal gauge wear, or rapidly deteriorating bit geometry can indicate that the current operating conditions are placing excessive thermal or mechanical stress on the bit.

Fractured or Broken Rock

Fractured rock can behave very differently from intact rock. The bit may repeatedly move between stronger and weaker zones, making bit-rock contact less stable and loading less predictable.

Typical concerns include:

• Increased vibration
• Unstable bit-rock contact
• Jamming
• Excessive rotation
• Uneven loading
• Hole deviation

In fractured formations, simply increasing feed pressure or impact energy may increase instability rather than improve productive drilling.

Rotation and feed should be controlled so the bit remains stable while maintaining effective rock breaking. Flushing also becomes important because broken material and loose fragments can interfere with hole cleaning and increase the risk of jamming.

The same drilling parameters can produce completely different results in intact hard rock and fractured rock.

Softer or More Drillable Rock

More drillable rock may allow a higher ROP with lower mechanical loading, but this does not mean that every available drilling parameter should be increased.

For example, increasing RPM may initially improve penetration, but after a certain point the additional rotation may mainly increase sliding, friction, gauge button wear, or heat rather than productive drilling.

The key question is:

Does the additional RPM actually produce additional productive drilling?

If ROP has already reached a stable level while bit wear, vibration, or energy consumption continues to increase, further increasing rotation speed may reduce overall drilling efficiency.

For more drillable formations, the target is still the same: stable ROP, controlled wear, good hole quality, and the lowest sustainable cost per meter.

Drilling Parameter Optimization Matrix

Use the following matrix as a field diagnostic guide rather than a fixed parameter-setting chart. Actual drilling conditions should be evaluated together with rock properties, bit design, equipment condition, and flushing performance.

Drilling Condition	ROP	Bit Wear	Vibration	Typical Field Signs	Recommended Action
Feed pressure too low	Low or unstable	Uneven or abnormal	Increased	Unstable bit-rock contact, bouncing or inconsistent impact	Gradually increase feed while monitoring ROP, vibration, and bit wear
Balanced operating range	Stable	Controlled	Low and stable	Consistent penetration, good hole quality, effective cuttings removal	Maintain the operating range and continue monitoring
Feed pressure too high	May increase initially, then plateau	Rapid or abnormal	High	Excessive bit loading, button chipping or cracking, possible jamming	Reduce feed and reassess impact energy, rotation, alignment, and rock conditions
Rotation speed too high	Small additional gain or no meaningful gain	Faster gauge or button wear	May increase	Excessive sliding, heat, vibration, or unstable drilling	Reduce RPM and compare sustained ROP and wear
Impact energy too high	May increase initially, then plateau	Accelerated carbide or bit-body stress	Increased	Button chipping, cracking, unstable drilling, excessive component loading	Reduce impact intensity and reassess feed, rotation, and bit condition
Flushing insufficient	Falling or unstable	Accelerated abrasive or thermal wear	May increase	Poor hole cleaning, cuttings retention, dust accumulation, reduced penetration	Improve flushing before increasing feed or impact intensity
Rock condition changes	Sudden change	May change rapidly	May increase	ROP changes despite unchanged drilling settings; fractured or variable formation	Reassess rock conditions and adjust the operating window rather than maintaining the same settings

Important: A single symptom does not always identify a single cause. For example, button chipping, vibration, or abnormal gauge button wear can result from a combination of feed pressure, impact energy, rotation speed, alignment, bit condition, and rock structure.

5 Signs Your Drilling Parameters Are Too Aggressive

Increasing drilling intensity can improve ROP, but the gain may come at the cost of faster bit wear, instability, or higher operating costs. Watch for these field signs.

Bit Wear Accelerates Faster Than ROP Improves

A small ROP improvement is not necessarily worthwhile if bit life decreases much faster.

For example:

Illustrative example only: ROP increases by 10%, but bit life decreases by 30%.

The actual economic impact depends on bit cost, drilling time, downtime, and other operating costs. The important signal is that wear is increasing faster than productive output.

Carbide Buttons Show Abnormal Wear

Inspect the buttons after drilling. Warning signs can include:

• Excessive flattening
• Chipping
• Cracking
• Button loss
• Abnormal gauge button wear
• Heat checking

These conditions should be evaluated together with drilling parameters, alignment, bit condition, and rock characteristics rather than attributed to one parameter alone.

Vibration and Torque Become Unstable

Increasing feed or impact intensity can push the drilling operation beyond a stable operating range.

Sudden changes in vibration or torque, repeated impact instability, or irregular machine loading indicate that the current parameters should be reassessed before drilling intensity is increased further.

Hole Quality Deteriorates

Higher ROP is not useful if hole quality becomes unacceptable.

Watch for:

• Hole deviation
• Reduced gauge button
• Unstable hole diameter
• Poor hole cleaning

Poor hole quality can also increase downstream problems such as difficult drilling-tool movement, re-drilling, or additional hole preparation.

Cost per Meter Starts Rising

This is the final economic test.

If higher drilling intensity produces only a small productivity gain while increasing bit consumption, downtime, energy use, or equipment wear, cost per meter may begin to rise even though ROP is higher.

When this happens, the drilling parameters have likely moved beyond their economically useful operating range.

How to Know When You Are Drilling Too Slowly

Overly aggressive drilling is not the only problem. Parameters can also be set too conservatively, leaving productive capacity unused.

Low ROP + Low Bit Wear

If ROP is consistently low while the bit shows very little wear, the drilling operation may be running below an efficient operating range.

This does not automatically mean feed pressure or impact should be increased. First check rock conditions, bit condition, flushing, alignment, and equipment performance.

Bit Looks Good but Machine Hours Are Too High

A bit that lasts a long time is not necessarily producing the lowest drilling cost.

If longer bit life requires significantly more machine hours, labor, energy, and drilling time per meter, the savings in bit consumption may be offset by higher operating costs.

Longer Bit Life Does Not Offset Lost Productivity

The economic comparison should consider the total cost, not tooling consumption alone:

Tooling Savings < Equipment + Labor + Energy Cost

When the additional bit life saves less money than the cost of the extra drilling time, the operation may be too conservative.

Cost per Meter Still Increases

Ultimately, cost per meter provides the clearest economic signal.

If ROP is low and extending bit life does not reduce total drilling cost, increasing drilling intensity within a controlled operating range may be justified.

The objective is not to drill as fast as possible or make the bit last as long as possible. It is to maintain the lowest sustainable cost per meter without sacrificing drilling stability or hole quality.

Before Increasing ROP, Check These 4 Things

When ROP falls, increasing feed pressure, impact energy, or rotation speed is not always the right first response. Before changing drilling parameters, check the four conditions below.

Rock Condition

Check whether the formation has changed.

Look for:

• Increased rock hardness or strength
• More abrasive rock
• Fractured or broken zones
• Changes in rock integrity
• Loose material or unstable formations

A change in rock conditions can reduce ROP even when the drilling parameters remain unchanged. Adjust the operating range to the actual formation rather than trying to force the previous ROP.

Bit Condition

Inspect the rock drill bit before increasing drilling intensity.

Check for:

• Excessive button wear or flattening
• Chipped or cracked buttons
• Button loss
• Gauge button wear
• Damaged bit body
• Reduced cutting efficiency

Do not compensate for a worn bit by increasing drilling parameters.

A worn bit may require more drilling force to achieve the same penetration, but increasing the load can accelerate damage and increase cost per meter. If the bit has reached the end of its practical service life, replacing or regrinding it may be more economical.

Flushing Performance

Check whether cuttings are being removed effectively from the hole.

Poor flushing can cause:

• Cuttings accumulation
• Regrinding of drilled material
• Increased abrasive wear
• Heat around the bit
• Reduced penetration efficiency
• Poor hole cleaning

If flushing is inadequate, improve hole cleaning before increasing feed pressure or impact intensity.

Drilling Tool and Equipment Condition

Check the mechanical condition of the drilling equipment and connected tools.

Inspect for:

• Misalignment
• Excessive vibration
• Loose or damaged connections
• Worn shank or coupling components
• Hydraulic or pneumatic performance issues
• Abnormal feed or rotation behavior

A drilling parameter adjustment cannot compensate for a mechanical problem.

A parameter change cannot solve a mechanical problem.

If the equipment cannot deliver stable feed, rotation, impact, or flushing, increasing the operating parameters may increase wear and instability without producing a meaningful improvement in ROP.

Before increasing ROP, identify the cause of the performance loss first.

How to Find the Economic Operating Window in the Field

There is no universal combination of feed pressure, impact energy, rotation speed, and flushing that delivers the lowest drilling cost in every formation. The most reliable approach is to establish a field baseline, make controlled changes, and compare productivity with bit wear and total operating cost.

The goal is to identify an economic operating window where ROP remains productive, bit wear is controlled, downtime is acceptable, and cost per meter is minimized.

Step 1 — Establish a Baseline

Record the current drilling conditions before changing any major parameter.

At a minimum, track:

• Rotation speed (RPM)
• Feed pressure
• Impact pressure or impact energy
• Flushing conditions
• ROP
• Meters drilled per bit
• Bit condition
• Bit changing and regrinding time
• Downtime
• Cost per meter

The baseline provides a reference for determining whether a parameter change actually improves the overall drilling result.

Step 2 — Change One Major Parameter at a Time

Make controlled changes rather than changing several parameters simultaneously.

Do not increase RPM, feed pressure, and impact simultaneously.

If multiple parameters are changed at once, it becomes difficult to determine which change improved ROP and which one increased bit wear or instability.

After each adjustment, allow enough drilling footage or operating time to obtain a representative result rather than judging the change from a short interval.

Step 3 — Measure Sustained ROP, Not Peak ROP

Peak ROP can be useful for understanding drilling capability, but it does not necessarily represent productive drilling performance.

For example, recording:

1.2 m/min

does not show how much time was spent changing bits, clearing the hole, dealing with vibration, or recovering from drilling interruptions.

A more useful measure is:

Sustained ROP = Meters Drilled ÷ Effective Drilling Time

For project-level evaluation, an even broader measure can be used:

Productive Drilling Rate = Meters Drilled ÷ Total Shift Time

This includes practical losses such as bit changes, downtime, and other interruptions.

A setting that produces a slightly lower instantaneous ROP but significantly less downtime may deliver more meters per shift and a lower cost per meter.

Step 4 — Compare Wear Against Productivity Gain

For each parameter setting, compare the additional meters drilled with the additional wear and operating cost.

Ask:

• How much did ROP improve?
• How many more meters were drilled per bit?
• Did carbide button wear accelerate?
• Did vibration increase?
• Did bit-changing frequency increase?
• Did downtime increase?
• Did total drilling cost per meter decrease?

A parameter change should be considered beneficial only when the productivity gain justifies the additional wear, downtime, and operating cost.

Step 5 — Identify the Point of Diminishing Returns

As drilling intensity increases, ROP may initially improve significantly. After a certain point, however, each additional increase may produce only a small productivity gain while accelerating bit wear, vibration, downtime, or other operating costs.

The economic operating window is normally around the range where productivity remains strong without causing disproportionate increases in total drilling cost.

The following example illustrates the concept:

Setting	ROP	Bit Life	Downtime	Cost/m
A	Low	High	Low	High
B	Medium	Medium	Low	Lowest
C	High	Low	High	High

Illustrative example only. The actual economic operating window will vary with rock conditions, hole diameter, bit design, drilling equipment, operating costs, and project requirements.

The objective is not to select the setting with the highest ROP or the longest bit life. It is to identify the setting that provides the best balance between productive drilling, controlled wear, downtime, and total cost per meter.

When Should You Regrind or Replace a Rock Drill Bit?

Regrinding can restore the cutting profile of a worn rock drill bit and extend its useful service life, but not every worn bit should be reground. The decision should consider bit condition, drilling performance, recoverability, and the total cost of regrinding versus replacement.

Regrind When

Regrinding may be appropriate when the bit is worn, but its cutting structure and body remain suitable for further use.

Typical conditions include:

• Button profiles have flattened beyond the acceptable working condition
• Gauge buttons are worn
• Penetration has dropped
• The cutting profile is no longer effective
• Carbide damage remains recoverable
• The bit body remains structurally sound

The purpose of regrinding is to restore an effective cutting profile, not simply to make the bit look new.

After regrinding, the bit should be inspected to confirm that the button profile, gauge button, and overall geometry are suitable for continued drilling.

Stop Drilling and Inspect Immediately When

Some conditions require inspection before drilling continues. Continuing to drill through visible damage can increase the risk of further bit or equipment damage.

Stop and inspect when you observe:

• Carbide cracking
• Severe button chipping
• Button loss
• Bit-body cracking
• Abnormal gauge wear
• Sudden ROP drop
• Severe vibration
• Abnormal torque
• Suspected jamming

Not every symptom means the bit itself is the root cause. For example, sudden vibration or torque changes may also result from fractured rock, poor alignment, drilling-tool problems, or hole-cleaning issues.

Do Not Regrind When

Regrinding is not economical or technically appropriate when the underlying bit structure can no longer support reliable drilling.

Avoid regrinding when:

• The bit body is cracked
• Severe structural damage is present
• Carbide damage is beyond economical recovery
• Repeated regrinding produces poor or declining ROP
• Regrinding cost plus lost production exceeds the economics of replacement

A bit that can technically be reground is not necessarily worth regrinding.

The final decision should compare the expected meters after regrinding with the regrinding cost, downtime, expected bit performance, and replacement cost. If the recovered bit cannot deliver sufficient drilling performance, replacement may provide a lower cost per meter.

Regrind if the bit is recoverable and can deliver economical drilling performance. Replace if structural damage or poor post-regrinding performance makes further use uneconomical.

Rock Drill Bit Regrinding Checklist

Use this checklist to determine whether a worn rock drill bit is suitable for regrinding and to track its performance after regrinding.

Before Regrinding

Inspect the bit and compare its current drilling performance with the previous baseline.

• Check bit body condition
• Check for carbide button cracks
• Check for button chipping
• Check gauge button wear
• Check face wear
• Compare current ROP with the baseline
• Review vibration history
• Record meters drilled
• Check previous regrinding history, if applicable

Regrinding Decision

Before sending the bit for regrinding, confirm:

• Is the carbide damage repairable?
• Is the bit body structurally sound?
• Is the gauge button condition recoverable?
• Can the cutting profile be restored effectively?
• Is expected post-grinding performance acceptable?
• Is regrinding more economical than replacement plus downtime?

If the bit fails a critical structural inspection, regrinding should not be used simply to extend its service life.

After Regrinding

Verify the restored bit condition before returning it to service.

• Restore the correct button profile
• Check gauge button diameter
• Remove or repair damaged carbide
• Inspect for cracks
• Check the overall cutting profile
• Record regrinding date
• Record regrinding cycle number
• Record meters drilled after regrinding
• Compare post-regrinding ROP with the previous baseline

Tracking meters drilled, ROP, and regrinding cycles over time helps determine whether regrinding is actually reducing cost per meter or simply extending the physical life of a bit.

Practical Decision Guide: Increase, Maintain or Reduce Drilling Intensity?

Use this guide as a field decision aid. The observations below indicate possible causes and recommended next checks, but actual adjustments should consider rock conditions, bit design, drilling equipment, and tool condition.

Field Observation	Possible Cause / Interpretation	Recommended Action
Low ROP + low wear	Operating parameters may be too conservative	Gradually increase drilling intensity and monitor ROP, vibration, and wear
High ROP + rapid wear	Excessive loading or drilling intensity	Reduce the relevant parameter and reassess the operating balance
Low ROP + high vibration	Possible mechanical, alignment, rock, or parameter issue	Inspect drilling tools, alignment, bit condition, and rock conditions before increasing parameters
Low ROP + poor flushing	Ineffective hole cleaning	Improve flushing before increasing feed pressure or impact intensity
High ROP + rising cost/m	Productivity gain is being offset by tooling or operating costs	Retune drilling parameters and compare sustained ROP with total cost
Long bit life + poor productivity	Operating conditions may be overly conservative	Test a more productive setting under controlled conditions
Falling ROP + increasing wear	Bit condition may be deteriorating or drilling conditions may have changed	Inspect the bit and consider regrinding or replacement
Stable ROP + stable wear + acceptable cost/m	Operating conditions are within a balanced economic window	Maintain the current range and continue monitoring

The decision should not be based on ROP alone. A useful field rule is:

Increase intensity when productivity is low, and the bit has unused capacity.

Reduce intensity when additional productivity is creating disproportionate wear or cost.

Maintain the setting when ROP, wear, hole quality, and cost per meter remain stable.

Field Checklist for ROP and Bit Life Optimization

Use this checklist to review drilling performance before, during, and after each drilling test or operating period.

Before Drilling

• Rock condition
• Bit condition
• Hole diameter
• Flushing condition
• Drilling tool condition
• Baseline ROP

During Drilling

• ROP
• Feed pressure
• Rotation speed (RPM)
• Impact pressure/energy
• Vibration
• Torque
• Hole quality

After Drilling

• Meters drilled per bit
• Bit wear
• Downtime
• Regrinding requirements
• Cost per meter

Final Decision

Increase, maintain, or reduce drilling intensity based on sustained ROP, bit wear, drilling stability, and cost per meter—not peak penetration rate alone.

Frequently Asked Questions
