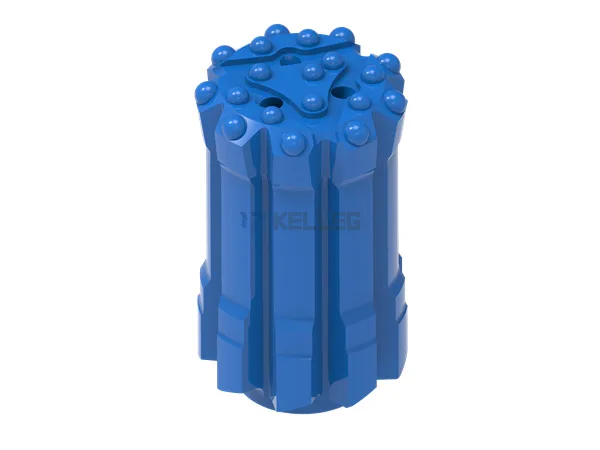

In mining, tunneling, and construction projects, hot-inserted tooth button bits are essential tools because of their excellent wear resistance and long service life. However, many may not realize that the outstanding performance of these drill bits is not solely dependent on material selection; the key lies in the mechanical processing techniques used during their manufacturing. Every detail of the mechanical processing—from the accuracy of the drilling to the surface finish—directly impacts the performance and longevity of the drill bits. So, why is it essential to maintain strict control over the mechanical processing techniques used for hot-inserted tooth drill bits? This article will examine the significance of mechanical processing in the manufacturing of these drill bits and discuss how precise machining can improve their overall performance.
What is the Mechanical Processing of Hot-Inserted Tooth Button Bits?
The mechanical processing of hot-inserted tooth button bits refers to the entire manufacturing process, from raw material selection to the finished drill bit, including steps such as material selection, sawing, facing, profiling, drilling, heat treatment, and tooth insertion. Each step of the process must be carefully controlled to ensure that the drill bit meets the design requirements for geometric dimensions, surface quality, and internal structure. Any oversight in these steps can lead to decreased performance of the button bit, which may result in problems such as breakage or tooth detachment during use.
Importance of Mechanical Processing Techniques
Ensuring Geometric Dimension Accuracy
Hot-inserted tooth button bits need to make close contact with rocks during operation, meaning their dimensional accuracy directly affects drilling efficiency and stability. Processes such as facing, profiling, and drilling help maintain the accuracy of each part of the drill bit, preventing instability during drilling and damage to the bit caused by dimensional deviations.
Improving Surface Quality
Mechanical processing also involves the careful treatment of the drill bit’s surface. High-quality surface treatment reduces friction resistance during operation, enhancing drilling efficiency. Furthermore, a smooth surface quality minimizes stress concentration, reducing the risk of breakage during use.
Ensuring Tooth Insertion Quality
The process of inserting teeth into hot-inserted tooth button bits should be carried out at high temperatures. The precision of the mechanical processing is crucial for ensuring the quality of the tooth insertion. If the hole dimensions and positioning are not accurate, the carbide button may not attach securely to the drill bit body. It can adversely affect the bit’s service life and operational efficiency.
Key Steps in the Mechanical Processing of Hot-Inserted Tooth Button Bits
Material Selection
The materials used for hot-inserted tooth button bits are usually high-strength alloy steels such as 40Cr, 42CrMo, and Cr12MoV. These materials possess outstanding mechanical properties and wear resistance, making them well-suited for challenging work environments.
Preliminary Processing
After selecting the material, preliminary processing steps such as sawing, facing, profiling, and drilling are carried out. Among these, facing and profiling is critical for maintaining the geometric dimensions of the drill bit. It is essential to strictly control dimensions and tolerances to ensure that the machining results are precise.
Fine Processing
After preliminary processing, fine processing steps such as reaming and grinding steps. These steps can further improve the dimensional accuracy and surface quality of the drill bit and ensure the smoothness of the cementing process.
Quality Inspection
Once the machining is complete, the drill bit undergoes strict quality control, including dimension measurement, surface quality inspection, and tooth insertion quality checks. Only drill bits that pass these inspections can proceed to the next stage, ensuring the final product meets the required standards.
How to Choose the Appropriate Mechanical Processing Techniques?
Understand the Operating Environment and Requirements
Before choosing mechanical processing techniques, it’s essential to understand the drill bit’s operational environment and requirements. For instance, what type of rock will the drill bit be used on? What are the temperature and humidity conditions of the work environment? What level of impact and wear will the drill bit endure? These factors will directly influence the choice of processing techniques.
- Hard Rock: If the drill bit will be used on hard rock, techniques to enhance hardness and wear resistance, such as quenching and surface hardening, are essential.
- High-Impact Environment: For use in high-impact environments, techniques that improve toughness and fatigue resistance, such as tempering and stress-relieving treatments, are suitable.
Consider Material Properties
Different materials have varying mechanical properties and machining characteristics. When choosing mechanical processing methods, it is essential to carefully consider the characteristics of the material to ensure the best processing results and high-quality finished products.
- High-Strength Materials: For high-strength materials, processing techniques that maintain strength and toughness, such as precision grinding and electrical discharge machining, are optimal.
- High-Wear-Resistant Materials: For wear-resistant materials, processes that improve surface hardness and finish, such as polishing and high-frequency quenching, should be selected.
Select Appropriate Processing Equipment and Technology
Advances in modern machining equipment and technologies provide more options for drill bit manufacturing. Choosing the right equipment and techniques can significantly improve machining precision and efficiency.
- CNC Machines: CNC machines are ideal for machining complex shapes and meeting high precision requirements.
- Laser Processing: Laser technology enables high-precision cutting and surface treatment, especially useful for machining hard materials.
Strictly Control Processing Parameters
Controlling processing parameters is critical during mechanical processing. Different parameters lead to different results, so they must be adjusted according to specific conditions.
- Cutting Speed: If the cutting speed is too high, burn marks may occur; if too low, processing efficiency decreases. The cutting speed should be chosen according to the material’s hardness and the specific processing requirements.
- Feed Rate: A feed rate that is too high can result in rough surfaces, while a feed rate that is too low reduces processing efficiency. The feed rate should be adjusted based on the specific characteristics of both the equipment and the material.
- Cooling Conditions: Proper cooling during machining prevents material overheating and deformation. Cooling methods and liquids should be selected based on the material and process.
Quality Control and Process Optimization
After mechanical processing, strict quality inspections are essential to ensure that the drill bit’s geometry, surface quality, and internal structure meet the design requirements. Quality checks help identify issues in the process and guide optimization.
- Geometric Dimension Inspection: Using coordinate measuring machines (CMMs) to verify the geometric dimensions.
- Surface Quality Inspection: Using surface roughness testers to check the finish and hardness.
- Internal Structure Inspection: Using metallographic microscopes to assess the internal structure for uniformity and defect-free characteristics.
Learn from Successful Cases and Experiences
When selecting mechanical processing techniques, it is beneficial to refer to successful cases and industry experiences. Learning from others can help avoid common errors and improve processing outcomes and final product quality.
- Industry Standards: Adhere to industry standards and guidelines when selecting appropriate processing techniques and equipment.
- Expert Advice: Seek advice from industry experts and technical personnel to receive professional guidance.
Conclusion
Selecting suitable mechanical processing techniques is crucial for producing high-quality hot-inserted tooth button bits. By understanding the operating environment and requirements, considering material properties, choosing the right equipment and technologies, controlling processing parameters, performing quality checks, and learning from successful experiences, you can ensure that the drill bit’s geometry, surface quality, and internal structure meet the design standards, ultimately delivering superior performance and long-lasting service life.
