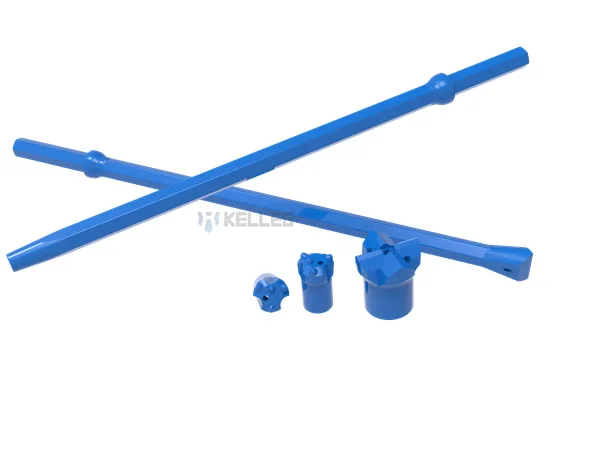

In mining, construction, and tunneling, rock drilling tools are essential for high-intensity operations. Whether dealing with hard rocks or complex geological conditions, the performance of these tools directly impacts work efficiency and cost control. However, many might not realize that behind the exceptional performance of rock drilling tools lies a key manufacturing process—heat treatment. Heat treatment modifies the internal structure of materials, resulting in increased hardness, wear resistance, strength, and toughness for drilling tools, which enhances their reliability and efficiency in extreme environments. In this article, we will examine how heat treatment influences the performance of rock drilling tools and why it is essential.
What is Heat Treatment?
Heat treatment is a process in which metal materials are heated, held at a specific temperature, and then cooled in a controlled manner to modify their internal structure, thereby enhancing their mechanical properties. Heat treatment for rock drilling tools typically involves processes such as annealing, normalizing, quenching, and tempering. These techniques greatly enhance the tool’s hardness, wear resistance, strength, and toughness, ensuring optimal performance even in demanding working conditions.
How Heat Treatment Enhances the Performance of Rock Drilling Tools?
Improving Hardness and Wear Resistance
Rock drilling tools must withstand hard rocks and minerals during operation, requiring exceptional hardness and wear resistance. Without these characteristics, tools may wear down, deform, or even break. Quenching and tempering can significantly enhance the hardness and wear resistance of the tools. For instance, after heat treatment, the surface hardness of drilling tools can reach HRC 48-52, far higher than untreated tools.
Enhancing Strength and Toughness
Rock drilling tools are exposed to immense impact forces and must remain stable under high temperature and pressure conditions. If tools lack adequate strength and toughness, they may crack or fracture. Performing a tempering treatment after quenching can significantly enhance the tool’s strength and toughness. For example, the tensile strength of a treated tool can reach 1070-1120 MPa, and its yield strength can range from 920-950 MPa, far exceeding untreated tools.
Improving Fatigue Resistance
Rock drilling tools are subject to repetitive stress cycles over long periods, leading to fatigue cracks. Tempering, which includes quenching and tempering, significantly enhances the fatigue resistance of tools, resulting in longer service life in high-stress environments.
Reducing Internal Stress and Deformation
During manufacturing and use, internal stress can develop within the drilling tool. If not properly relieved, these stresses can lead to deformation or cracking. Heat treatment processes like annealing and tempering effectively reduce internal stress, improving the tool’s stability and reducing the risk of deformation or cracking. For example, annealing treatment significantly lowers internal stress, enhancing shape stability.
Extending Service Life
Heat treatment improves the mechanical properties of rock drilling tools and extends their service life. A treated tool can last over 20% longer under the same working conditions. For example, a heat-treated tool can achieve an average drilling depth of 183.7-186.5 meters, whereas an untreated tool only reaches 146.0-147.5 meters.
Key Heat Treatment Processes
Annealing
Annealing involves heating the tool to a specific temperature and cooling it slowly. This process removes internal stresses, improves machinability, and prepares the tool for subsequent heat treatment steps.
Quenching
Quenching is heating the tool to high temperatures and then rapidly cooling it. It significantly enhances the tool’s hardness and wear resistance but also induces internal stresses, making subsequent tempering necessary.
Tempering
Tempering is reheating a quenched tool to a specific temperature and then cooling it slowly. This step reduces internal stresses and enhances the tool’s toughness and strength, allowing it to perform well in harsh environments.
Normalization
Normalization resembles annealing, but it requires heating the tool to a higher temperature and cooling it in air instead of in water or oil. It helps refine the grain structure and improve mechanical properties.
Practical Application of Heat Treatment in Rock Drilling Tools
To better understand how heat treatment affects the performance of rock drilling tools, let’s examine some actual research data. According to experiments by the Northwest Mining and Metallurgy Research Institute, optimized heat treatment processes resulted in a 30% increase in tensile strength, a 20% increase in yield strength, and a 20% improvement in impact energy. It means heat-treated tools are more durable and can maintain high efficiency even in tougher environments.
Moreover, the study showed that heat-treated tools achieved an average drilling depth of approximately 20% deeper than untreated ones, further highlighting the importance of heat treatment in improving rock drilling tool performance.
How to Choose the Right Heat Treatment Process?
While heat treatment is crucial for rock drilling tools, different materials and applications require different heat-treatment approaches. Common materials for rock drilling tools include high-strength alloy steels such as 40Cr, 42CrMo, and Cr12MoV. When these materials are properly heat-treated, their mechanical properties are significantly improved.
In practical production, the choice of heat treatment process depends on the tool’s intended use and working conditions. For tools requiring high hardness and wear resistance, high-temperature quenching followed by low-temperature tempering is suitable. For tools that need high toughness and impact resistance, medium-temperature quenching and tempering are preferable.
Future Trends in Heat Treatment for Rock Drilling Tools
With the advancement of technology, heat treatment processes are continuously evolving. In recent years, new technologies such as vacuum heat treatment and laser heat treatment have been increasingly applied to rock drilling tool manufacturing. These new technologies improve the precision and efficiency of heat treatment and reduce energy consumption and environmental pollution, opening new possibilities for enhancing rock drilling tool performance.
Conclusion
In conclusion, heat treatment is an essential step in the manufacturing of rock drilling tools. By altering the material’s internal structure, heat treatment significantly improves the tool’s hardness, wear resistance, strength, and toughness, enabling it to perform effectively in harsh conditions. Whether for mining, tunneling, or other high-intensity operations, heat-treated rock drilling tools provide higher efficiency and longer service life.
If you are looking for high-performance rock drilling tools, it is important to pay attention to the heat treatment process during their manufacture. Only when heat-treated can drilling tools maintain their excellent performance under extreme conditions and bring you higher economic benefits.
