Introduction #
Selecting the right DTH drill bit face design is one of the most important decisions in rock drilling. The face profile—whether Flat, Concave, Convex, or Drop Center—directly affects penetration rate, hole straightness, wear patterns, and overall drilling efficiency. Operators often face challenges such as off-center holes, accelerated wear, and costly downtime when the wrong face design is used.
This FAQ guide answers the most common questions about DTH drill bit face designs, helping you understand which type is best for different rock conditions and how to maximize drill bit performance for your projects.

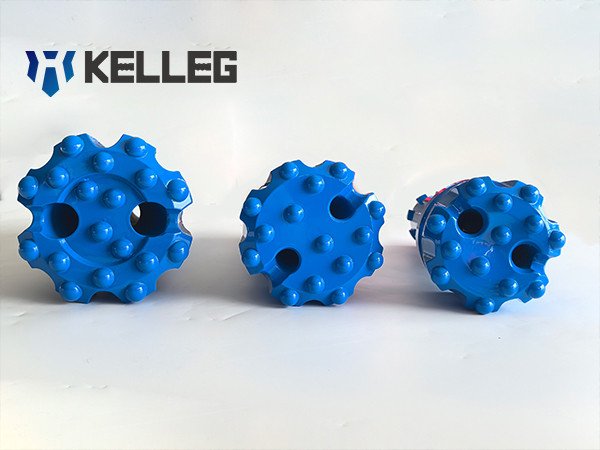

What is a DTH drill bit face design, and why does it matter? #
The face design of a DTH drill bit determines how the buttons contact the rock, how cuttings are removed, and how efficiently the hole is drilled. Matching the right face to rock conditions can increase penetration rates by 30–50% and extend bit life.
How do Flat Face bits perform in different rock conditions? #
Flat Face bits are general-purpose and perform well in all rock types, especially hard, abrasive rock like granite, basalt, and hard limestone. They offer high durability and hole straightness in high-silica environments but may be slower in soft or fractured rock.
When should I use a Concave Face bit? #
Concave Face bits are best for unconsolidated or broken rock and medium to hard formations where maintaining hole straightness is crucial. They reduce uneven button wear and improve cutting removal, but are less effective in very soft or highly fractured rock.
What advantages do Convex Face bits offer? #
Convex Face bits are designed for fast penetration in softer rock like shale or limestone with low silica content. Hybrid convex/concave designs combine speed with straighter holes, making them suitable for medium-hard formations and unconsolidated rock.
When is a Drop Center Face bit ideal? #
Drop Center bits feature a central depression with perimeter buttons and are ideal for soft or broken rock. They maximize penetration and cuttings removal, especially in high-impact drilling. However, hole straightness may be lower in very hard or abrasive rock.
How does face design affect drilling efficiency and bit life? #
- Proper face design optimizes energy transfer from the hammer to the rock.
- It ensures efficient cutting removal, reducing clogging or balling.
- It distributes wear evenly across buttons, extending the lifespan.
- Choosing the wrong face can cause off-center holes, accelerated wear, and costly downtime.
Can I switch face designs without changing button type? #
Yes, but it’s recommended to match face design with button type and layout for optimal performance. For example, spherical or conical buttons may perform differently depending on the bit’s face profile. Correct matching reduces vibration, improves penetration, and maintains hole straightness.
How do I select the right face design for my drilling project? #
Consider the following factors:
- Rock hardness and abrasiveness
- Fracturing and stability of rock
- Hole diameter and depth
- Drilling method and rig type
Quick reference table:
| Face Design | Ideal Rock Conditions | Key Benefit |
|---|---|---|
| Flat Face | Hard, abrasive rock | Durability & straight holes |
| Concave Face | Broken, medium-hard rock | Hole stability & low wear |
| Convex Face | Soft/medium rock, low silica | Fast penetration |
| Drop Center | Soft/broken rock | Maximum penetration & flushing |
Pro Tips for Maintaining Drill Bit Performance #
- Inspect and rotate bits regularly to ensure even wear.
- Match face design with button type and layout for optimal results.
- Adjust air pressure and feed rate based on rock conditions.
Conclusion #
Choosing the correct face design can significantly improve drilling efficiency, extend bit life, and reduce operational costs. Flat, Concave, Convex, and Drop Center bits each have unique strengths depending on rock type, hardness, and formation stability.
By understanding the key differences and matching the bit to your drilling conditions, you can avoid common issues such as uneven wear, off-center holes, and slow penetration. For complex or large-scale projects, consulting with professional DTH drill bit suppliers is recommended to ensure optimal performance and cost-effective drilling operations.
