Rock Drill Bit Types Explained: Top Hammer vs DTH vs Rotary – Pros, Cons & When to Use Each

Introduction #

Rock drill bits are not a one-size-fits-all solution. Top Hammer, DTH (Down-the-Hole), and Rotary drilling methods each have their own strengths, and choosing the right one can make a significant difference in your project’s success.

In real-world drilling operations, many contractors and engineers face the same question:

What is the difference between Top Hammer, DTH, and Rotary drilling—and which one should I use?

The answer is not always straightforward. Each method performs differently depending on factors such as rock hardness, hole depth, accuracy requirements, and project budget. Selecting the wrong approach can lead to faster tool wear, lower drilling efficiency, and increased downtime.

In fact, using an unsuitable drilling method can increase costs by 30–50% while reducing overall productivity.

This guide is designed to help you make the right decision. You will learn:

• How Top Hammer, DTH, and Rotary drilling methods work
• The key differences in performance, cost, and efficiency
• Which method is best suited for different rock conditions
• How to optimize your drilling operations and reduce total cost

By the end of this article, you’ll have a clear understanding of when to use each drilling method—and how to maximize both efficiency and return on investment in your drilling projects.

Quick Comparison: Top Hammer Drilling vs DTH Drilling vs Rotary Drilling #

To quickly understand the differences between the three main rock drilling methods, the table below highlights their key characteristics, ideal applications, and performance factors:

Method	Best For	Hole Depth	Rock Type	Drilling Speed	Cost Level	Hole Accuracy
Top Hammer Drilling	Shallow drilling, tunneling, benching	< 30 m	Medium to hard rock	Fast	Low	Medium
DTH (Down-the-Hole) Drilling	Deep holes, high-precision drilling	30–200 m	Hard and abrasive rock	Medium	Medium	High
Rotary Drilling	Large diameter holes, soft formations	Deep (varies)	Soft to medium rock	Fast	Low	Low

Key Takeaways #

• Top Hammer drilling is ideal for high-speed, shallow drilling with lower upfront costs.
• DTH drilling offers the best accuracy and performance in hard rock, especially for deeper holes.
• Rotary drilling is the most efficient choice for soft formations and large-diameter holes, but lacks precision in hard rock.

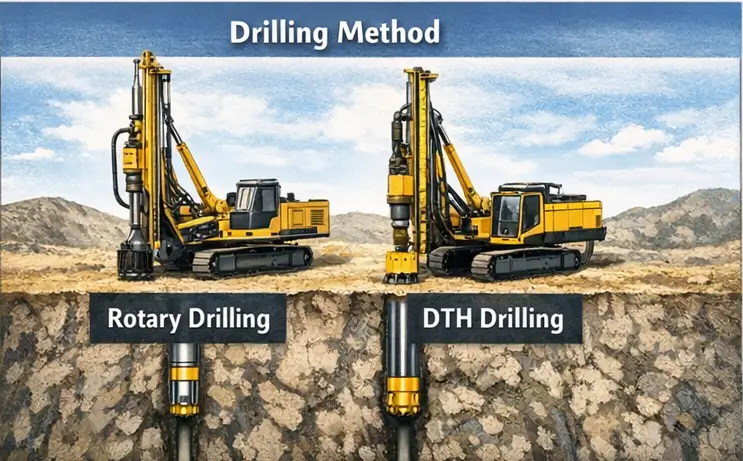

Rock Drill Bit Types by Drilling Method #

Rock drill bit types are primarily defined by the drilling method used. Different drilling systems require different bit structures to efficiently transfer energy and break rock formations.

In general, rock drilling can be divided into two main categories: percussive drilling and rotary drilling, each with its own corresponding bit designs.

Percussive Drilling Bits (Top Hammer Drill Bit& DTH Drill Bit) #

Percussive drilling methods—such as Top Hammer drilling and DTH (Down-the-Hole) drilling—rely on impact energy to fracture rock. As a result, they typically use:

• Button bits (most common)

These bits are designed with tungsten carbide inserts (buttons) that deliver high impact resistance and wear durability, making them ideal for medium to extremely hard rock formations.

Rotary Drilling Bits #

Rotary drilling works through continuous rotation and cutting/crushing action, rather than impact. Common rotary bit types include:

• Tricone bits (roller cone bits)
• PDC bits (Polycrystalline Diamond Compact bits)

These bits are optimized for soft to medium formations and are widely used in large-diameter drilling, such as water wells, oil & gas, and foundation projects.

Common Features Across All Rock Drill Bits #

Despite their structural differences, most rock drill bits share several key design elements:

• Tungsten carbide materials provide high hardness and wear resistance for longer service life
• Bit diameter determines hole size and must match project specifications
• Connection type (thread/shank) ensures compatibility with drilling equipment (e.g., API thread, shank systems)

Key Insight #

The drilling method determines the bit type, and choosing the correct combination is essential for maximizing drilling efficiency, reducing wear, and controlling overall project costs.

Top Hammer Rock Drill Bits & Drilling Method Explained #

Top Hammer drilling is one of the most widely used methods in benching, tunneling, and surface mining, especially for shallow holes and small-diameter applications.

Typical Top Hammer Drill Bit Types #

Top Hammer drilling tools typically use small to medium diameter threaded drill bits, including:

• Button bits (32–115 mm) – the most common choice
• Chisel bits and cross bits – used in specific or less demanding conditions

Among these, button bits with tungsten carbide inserts are preferred due to their durability and ability to handle medium to hard-rock formations.

How Top Hammer Drilling Works #

Top Hammer drilling is a percussive drilling method where the impact energy is generated by a rock drill located above ground.

• The hammer strikes at high frequency
• Energy is transmitted through drill rods
• The drill bit impacts and fractures the rock

This indirect energy transfer means that some energy is lost along the drilling, especially as hole depth increases.

Advantages of Top Hammer Drilling #

• Lower initial investment, Equipment and tooling costs are relatively low
• High penetration rate in shallow holes. Very efficient for short-hole drilling operations
• Lightweight and flexible equipment, easy to mobilize, and suitable for confined working areas
• Ideal for small-diameter blasting holes. Commonly used in quarrying and construction projects

Limitations of Top Hammer Drilling #

• Significant energy loss in deep holes (>30 m) reduces drilling efficiency as depth increases
• Lower hole straightness. Hole deviation becomes more likely in deeper drilling
• Faster bit and rod wear due to repeated impact transmission through the drill rod

Key Insight #

Top Hammer drilling is the best choice for fast, cost-effective shallow drilling, but it becomes less efficient and less accurate as hole depth increases.

DTH (Down-the-Hole) Rock Drill Bits & Drilling Method Explained #

Compared to Top Hammer drilling, DTH (Down-the-Hole) drilling is designed for deeper holes, harder rock, and higher precision requirements. It is widely used in mining, quarrying, and large-scale blasting projects where accuracy and consistency are critical.

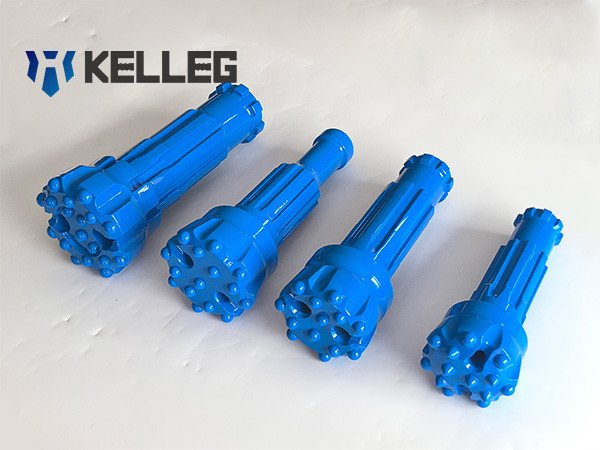

Typical DTH Drill Bit Types #

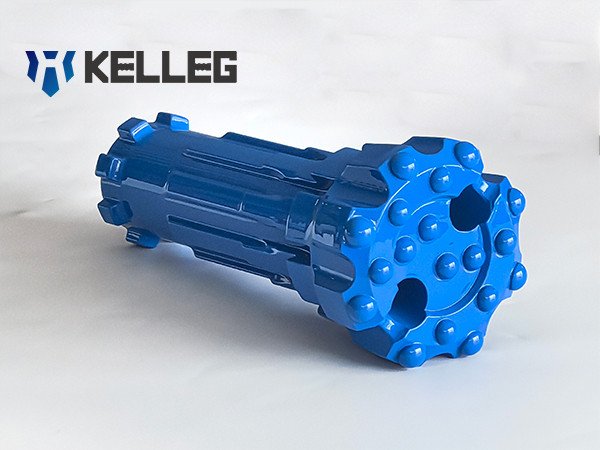

Unlike Top Hammer drilling tools that use smaller button bits, DTH drilling tools typically use:

• Large-diameter button bits (100–300 mm or larger)
• Reinforced skirt body design

These bits are engineered to withstand high impact forces directly at the hole bottom, making them ideal for hard and abrasive rock formations.

How DTH Drilling Works (vs Top Hammer Drilling) #

DTH drilling is also a percussive drilling method, but the key difference lies in where the impact energy is generated:

• In Top Hammer drilling, the hammer is located above ground, and energy is transmitted through drill rods
• In DTH drilling, the hammer is positioned directly above the drill bit at the bottom of the hole

This means:

• Impact energy is delivered directly to the rock
• Minimal energy loss, even at greater depths

As a result, DTH drilling tools maintain consistent drilling performance regardless of hole depth, unlike Top Hammer drilling tools.

Advantages of DTH Drilling (Compared to Top Hammer Drilling) #

• Stable power in deep holes. No significant energy loss as depth increases
• Superior hole straightness. Much higher accuracy than Top Hammer drilling, especially in deep drilling
• Best performance in hard and abrasive rock. More efficient rock breaking under tough conditions
• Lower noise levels at the surface. Impact occurs underground rather than at the rig

Limitations of DTH Drilling #

• Higher initial equipment investment requires a DTH hammer, an air compressor, and a compatible system
• Less efficient for shallow holes. Set up and operation are slower compared to Top Hammer
• Bit replacement requires specialized tools. Maintenance is more complex than top hammer drill bits

DTH drill bit vs Top Hammer drill bit: When to Choose Each #

• Choose DTH drill bit when:
  • Hole depth exceeds ~30 meters
  • High straightness and accuracy are required
  • Rock is hard, dense, or abrasive
• Choose Top Hammer drill bit when:
  • Drilling shallow holes (<30 m)
  • Speed and mobility are priorities
  • Budget is limited

Key Insight #

If your project involves deep, hard rock drilling where accuracy matters, DTH drill bit will significantly outperform Top Hammer drill bit—despite the higher upfront cost.

Rotary Rock Drill Bits & Drilling Method Explained #

Unlike Top Hammer drilling and DTH drilling, which rely on impact energy, Rotary drilling uses a completely different approach. It is best suited for large-diameter holes and softer, more uniform formations, and is widely applied in oil & gas, water well drilling, and large-scale foundation projects.

Typical Rotary Drill Bit Types #

Rotary drilling systems typically use:

• Tricone (roller cone) bits Suitable for a wide range of formations from soft to moderately hard rock
• PDC (Polycrystalline Diamond Compact) bits Designed for high efficiency in soft to medium, homogeneous formations

Compared to Top Hammer bits and DTH bits, rotary bits focus more on cutting and crushing efficiency rather than impact resistance.

How Rotary Drilling Works (vs Top Hammer Drilling & DTH Drilling) #

Rotary drilling operates using:

• Continuous rotation
• High weight on bit (WOB)
• No percussive impact

Key differences:

• Top Hammer drilling/ DTH drilling → rely on impact to break rock
• Rotary drilling → relies on shear and cutting/crushing action

This makes Rotary drilling highly efficient in softer and more consistent formations, but less effective in hard or fractured rock.

Advantages of Rotary Drilling #

• Lowest cost for large-diameter holes (>140 mm). Ideal for bulk drilling operations
• High drilling speed in soft to medium formations, especially in uniform geological conditions
• Lower vibration and smoother operation reduce stress on equipment

Limitations of Rotary Drilling #

• Very slow penetration in hard rock. Significantly less efficient than DTH drilling or Top Hammer drilling
• Not suitable for fractured or highly variable formations. Reduced stability and performance
• Higher energy consumption (power demand) requires substantial torque and weight on the bit

Rotary drill bit vs Top Hammer bit vs DTH bit: When to Choose Rotary #

• Choose rotary drill bit when:
  • Large hole diameter is required (>140 mm)
  • Rock is soft to medium and relatively uniform
  • Project scale favors lower cost per meter
• Avoid rotary bit when:
  • Rock is hard or abrasive
  • High hole straightness is critical in deep, hard formations
  • Geological conditions are complex or fractured

Typical Applications #

• Oil & gas drilling
• Coal mining and coal seam drilling
• Water well drilling
• Large-diameter foundation and infrastructure projects

Key Insight #

Rotary drill bit delivers the best cost efficiency for large-diameter holes in soft formations, but cannot compete with DTH drill bit or Top Hammer bit in hard rock conditions.

Top Hammer vs DTH vs Rotary: Full Comparison of Methods & Drill Bit Types #

To help you quickly identify the best drilling solution, the table below compares drilling methods, corresponding drill bit types, and key performance indicators across Top Hammer, DTH, and Rotary systems.

Methods	Top Hammer Drilling	DTH Drilling	Rotary Drilling
Typical Bit Types	Pure rotary crushing/shearing (no impact)	Large-diameter DTH button bits (100–300 mm+)	Tricone (roller cone) / PDC bits (>140 mm)
Rock Breaking Method	Percussive impact from surface (through rods)	Direct percussive impact at hole bottom	Deep in soft formations, limited in hard rock
Best Hole Depth	< 30 m	> 30 m to 300 m+	Deep mining, water wells, and high-precision drilling
Hole Diameter Range	Small diameter	Medium to large diameter	Large diameter
Hard Rock Penetration Rate	Medium (fast in shallow holes)	Highest	Lowest
Hole Straightness	Medium	Highest	Medium (better in soft formations)
Cost per Meter	Lowest for shallow drilling	Lowest for deep hard rock	Lowest for soft rock drilling
Initial Equipment Cost	Lowest	Medium to high	Medium
Best Applications	Tunneling, quarry benching, shallow blasting	Deep mining, water wells, high-precision drilling	Oil & gas, coal seams, large-diameter foundation drilling

Key Takeaways #

• Top Hammer drill bit→ Best for fast, low-cost shallow drilling with small diameters
• DTH drill bit → Best for deep holes, hard rock, and high accuracy
• Rotary drill bit → Best for large-diameter holes in soft, uniform formations

Decision Tip #

If your project involves hard rock and depth, DTH drill bit is typically the most efficient choice.

If you prioritize speed and mobility in shallow drilling, Top Hammer drill bit is more suitable.

For large-diameter, soft formation drilling, Rotary drill bit offers the lowest cost per meter.

How to Choose the Right Drilling Method & Drill Bit Type #

Selecting the optimal drilling method is about matching project requirements with drilling performance, not just picking a popular system. Use this simple decision-focused approach to guide your choice.

Drilling Decision Checklist #

Before choosing a drilling method and corresponding bit type, ask the following key questions:

• Hole depth – Is it shallow (<30 m) or deep (>30 m)?
• Hole diameter – Small, medium, or large (>140 mm)?
• Rock hardness – Soft, medium, hard, or highly abrasive?
• Budget – Are you optimizing for initial investment or cost per meter?
• Accuracy requirements – Is hole straightness critical?

These factors will determine whether Top Hammer drilling, DTH drilling, or Rotary drilling is the best fit.

Matching Drilling Methods to Project Conditions #

Project Condition	Recommended Method & Drill Bit	Why it Works	Typical Applications
Shallow holes, small diameter, low budget	DTH drilling + Large-Diameter Button Bits	Fast, flexible, cost-effective	Small-scale mining (Africa), shallow tunneling (Asia), quarry benching
Deep holes, hard rock, high accuracy	Rotary drilling + Tricone / PDC Bits	Stable power at depth, precise hole alignment	Deep copper/gold mines (Latin America), large-scale hard rock projects (Africa)
Soft or uniform rock, large diameter, low vibration	Rotary drilling+ Tricone / PDC Bits	Efficient in soft formations, minimal vibration	Coal seam drilling (Asia), oil & gas, large-diameter foundations
Mixed formations (shallow + deep)	Hybrid: Top Hammer drilling shallow → DTH drilling deep	Optimizes speed, cost, and accuracy	Modern multi-depth mining or complex infrastructure

Practical Tips for Decision-Making #

1. Start with depth and rock hardness – These are the most critical factors influencing method selection.
2. Consider budget and equipment mobility – Top Hammer drill rig is lighter and cheaper; DTH drill rig requires more investment but delivers precision.
3. Use hybrid strategies for complex projects – Shallow sections can be drilled with Top Hammer drilling; deeper sections switch to DTH drilling.
4. Verify local operational conditions – Air supply, power availability, and site access can influence the practical choice.

Key Insight #

Choosing the right drilling method is less about brand or popularity and more about matching method, drill bit type, and project conditions. Using a decision-driven approach reduces costs, improves efficiency, and ensures hole quality.

Common Mistakes to Avoid When Choosing Rock Drill Bits #

Selecting the wrong drilling method or bit type can lead to higher costs, slower progress, and poor hole quality. Here are the most common mistakes and how to avoid them:

Choosing Based on Cost Only #

• Mistake: Selecting Top Hammer drill rig or a Rotary drill rig simply because it has the lowest upfront cost.
• Why it matters: Lower initial investment can result in higher per-meter costs, faster bit wear, and reduced efficiency.
• Tip: Always consider hole depth, rock hardness, and total project cost, not just equipment price.

Ignoring Rock Abrasiveness #

• Mistake: Using a bit that works well in soft rock for highly abrasive formations.
• Why it matters: Abrasive rock wears out drill bits quickly, especially button bits, increasing downtime.
• Tip: Match bit material and type to rock hardness and abrasiveness.

Using Top Hammer drill bit for Deep Holes #

• Mistake: Drilling beyond ~30 m with Top Hammer drill bit for efficiency or mobility.
• Why it matters: Energy loss along the drill rods reduces penetration rate and increases deviation.
• Tip: For deep or hard-rock holes, use DTH drilling for reliable power and accuracy.

Using Rotary in Hard or Fractured Rock #

• Mistake: Applying rotary bits in hard, dense, or highly fractured rock.
• Why it matters: Penetration becomes extremely slow, bits wear faster, and hole quality suffers.
• Tip: Reserve Rotary drilling for soft or uniform formations and large-diameter holes.

Key Insight #

Avoiding these mistakes ensures higher efficiency, lower costs, and better hole quality. The right combination of drilling method and drill bit type is critical for project success.

Conclusion #

Choosing the right rock drill bit goes hand in hand with selecting the correct drilling method. Each method—Top Hammer, DTH, or Rotary—has its own strengths and limitations depending on hole depth, rock type, diameter, and project requirements.

Selecting the right combination of drilling method and bit type is the key to reducing costs, improving efficiency, and ensuring hole quality.

To maximize your drilling performance:

• Work with an experienced supplier who understands various drilling conditions
• Get a customized solution tailored to your rock type, hole depth, and project goals

By leveraging expert guidance and the right equipment, your drilling projects will achieve better productivity, lower operational costs, and higher success rates.
