Top hammer drill bits are critical tools in rock drilling technology, widely used in mining, tunneling, construction, and geological exploration. These bits operate by delivering high-frequency impacts combined with rotational motion to break rock, making them particularly effective in hard and medium-hard formations. The complexity of geological conditions demands that top hammer drill bits be highly adaptable in design, materials, and operational parameters. This article explores the applications of top hammer drill bits in various geological environments, analyzing their technical features, categories, selection criteria, and suitable applications to provide practical insights for professionals.
Design and Features of Top Hammer Drill Bits
Top hammer drill bits are typically used with top hammer drilling rigs, where energy from a high-frequency piston is transmitted to the bit, combined with rotation to fracture rock. Key features include:
Structural Design: The bit’s cutting face is embedded with carbide, and the body is made of high-strength steel for durability and impact resistance.
Impact Efficiency: Operating at 2.000–3.000 impacts per minute, top hammer bits excel at breaking hard rock.
Application Scope: They are primarily suited for medium-hard to hard formations, such as granite, quartzite, and certain sandstones.
Variety of Models: Bits come in various tooth shapes and arrangements tailored to specific applications.

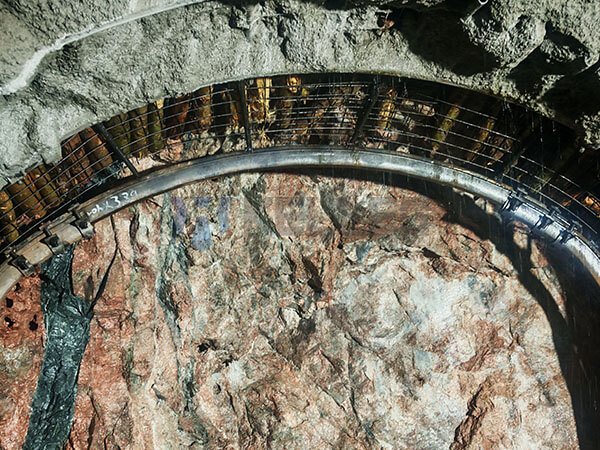

Applications in Different Geological Conditions
The performance of top hammer drill bits varies across geological conditions. Below is an analysis of their applications:
1. Hard Formations
Hard formations like granite, basalt, or quartzite are characterized by high strength and abrasiveness. Top hammer bits, with their high-frequency impact and carbide button designs, effectively fracture such rocks. Button bits are preferred for their wear resistance and impact strength, commonly used in mining for blast hole drilling.
2. Medium-Hard Formations
Medium-hard formations, such as sandstone, limestone, or shale, have moderate hardness and abrasiveness. Button bits are ideal due to their high cutting efficiency and longer lifespan. These bits are frequently used in tunneling for excavation.
3. Soft Formations
While top hammer bits are designed for harder formations, they can be used in soft formations like clay or sandy layers with adjusted low-impact frequencies. However, soft formations may cause balling, requiring enhanced flushing systems to prevent clogging.
4. Complex Formations
Complex formations with alternating soft and hard layers or fault zones pose significant challenges. Hybrid top hammer bits, combining button and chisel designs, offer greater adaptability. Real-time monitoring of impact force and rotation speed, along with parameter adjustments, can significantly improve drilling efficiency.
Categories of Top Hammer Drill Bits
Top hammer drill bits are classified based on tooth shape, structure, and application. The main categories include:
1. Button Bits
Button bits are the most common type of top hammer drill bits, featuring hemispherical carbide inserts on the cutting face. This design offers excellent wear resistance and impact strength, making it ideal for hard formations like granite and quartzite. Button bits are widely used in mining blast holes and tunnel excavation due to their ability to efficiently break hard rock.
2. Chisel Bits
Chisel bits use cylindrical carbide inserts, providing high cutting efficiency in medium-hard formations such as sandstone and limestone. They offer faster drilling speeds but may be less durable in highly abrasive conditions compared to button bits. Chisel bits are commonly used for anchor bolt holes and shallow drilling.
3. Cross Bits
Cross bits feature four carbide inserts arranged in a cross pattern, suitable for medium-hard to hard formations, particularly in fractured rock. Their structure provides stability and reduces deviation risks, making them ideal for geological exploration and small-scale blast hole drilling.
4. X-Bits
X-bits are a variation of cross bits, with inserts arranged in an X-shaped pattern, enhancing cutting efficiency and debris removal. They perform well in complex formations, such as fault zones, and are often used in deep hole drilling and tunneling projects.
5. Hybrid Bits
Hybrid bits combine the advantages of button and chisel designs, making them suitable for alternating soft and hard formations or complex environments. Their flexible tooth configurations can be customized for specific geological conditions, offering versatility in challenging drilling scenarios.
Selection Criteria for Top Hammer Drill Bits
Choosing the right top hammer drill bit involves several considerations:
Rock Properties: Hardness, abrasiveness, and fracture patterns influence drill bit tooth design and material selection.
Drilling Objectives: Tasks like blast hole drilling or anchor bolting require specific drill bit diameters and configurations.
Equipment Compatibility: The drill bit must match the drilling rig’s power, impact frequency, and drill rod specifications.
Cost-Effectiveness: Balancing drill bit cost with lifespan is critical, especially in large-scale mining operations.
Conclusion
Top hammer drill bits excel in hard and medium-hard formations, making them indispensable in mining, tunneling, and geological exploration. Understanding their design features, categories, suitable geological applications, and selection criteria enables operators to optimize drilling efficiency and reduce costs. Selecting the appropriate bit category and optimizing operational parameters will deliver higher productivity and economic benefits in drilling operations.
