The Shape of the Main Structure of DTH Drill Bit

Table of Contents

DTH drill bit is a tool used for geological exploration and mineral extraction, mainly composed of carbide, exhaust hole, head, spline, and impact end face. Among them, the carbide, the head, and the end face are the main structure of the DTH drill bit, and their shapes influence the performance of the DTH drill bit.

Carbides are the cutting part on the DTH drill bit and are usually made of high-hardness carbide to cut and penetrate when it comes into contact with the underground rock. These carbides require frequent replacement to maintain the DTH drill bit’s optimal working condition. Since there are many types of carbides, the shape will vary slightly depending on the manufacturer, so we will only focus on sharing the shape of the drill edge from the DTH drill bit.

DTH drill bit

Drill edge shape

According to the shape of the drill edge, DTH drill bits include blade type, button type, and cylindrical mixed type.

Blade type

Blade drill bis have carbide inserts embedded in the head of the drill bit, and the main features are as follows:

1. Blade drill bit is beneficial to chip removal in the center hole during the drilling process, and the edge angle of the carbide blade is easy to grind.

2. The number of repeated chisel marks is small, which can prevent uneven drilling end faces during drilling and make it suitable for high-speed drilling.

3. The position where the drill edge is far from the center point of the drill bit will bear a higher load during the drilling and is more likely to be worn and damaged. If the side of the blade drill bit wears out, the drill frame becomes wedge-shaped, and it is easy to jam the drill.

Button type

Button bits have drilling holes in the head of the drill bit. Usually, the carbides are embedded into the drill body by brazing, hot embedding, and cold pressing. The main features are as follows:

1. Button bit can be self-repaired during the drilling process, and the drilling speed is more stable.

2. The arrangement of the buttons of the button bit can make the carbides bear force evenly, which is helpful for rock-breaking drilling.

3. When the carbides part of the button bit is damaged, it can continue to work and have a longer service life.

4. Carbide inlay process is relatively simple.

Cylindrical mixed type

The cylindrical mixed drill bit has a peripheral insert and a central recess with buttons. It has the following characteristics:

1. During the drilling process, the central crushed rock volume is small, and the peripheral crushed rock volume is large for the cylindrical mixed drill bit.

2. It can better solve the problem of rapid radial wear of the drill bit.

3. The manufacturing process is complex, and its maintenance is difficult.

End face shape

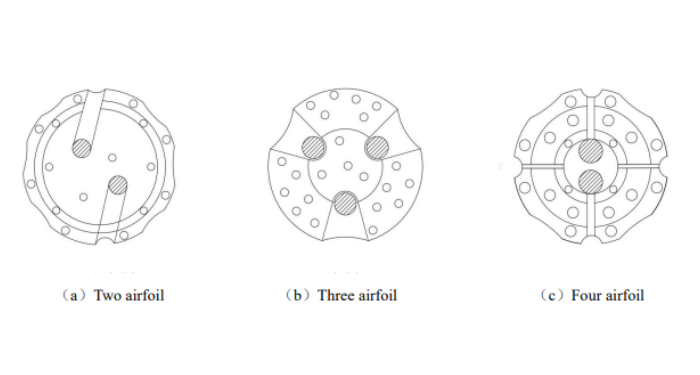

Crown shape

Crown shape
The picture comes from the Internet

The crown shape of DTH drill bits includes two airfoil, three airfoil, and four airfoil. The selection of the crown shape of the DTH drill bit is closely related to the field working conditions, the depth of the single hole, and the diameter of the hole.

1. Two airfoil drill bit is mainly used for small-diameter DTH hammers with a small number of teeth and high frequency, suitable for medium-hard and below strata, and drilling depth for shallow and medium strata.

2. Three airfoil drill bit is a larger slag discharge space than two airfoil drill bit and is suitable for drilling in hard strata and deep holes.

3. Four airfoil drill bit is the best slag removal effect, but the strength of the airfoils is low.

Impact end face shape

Impact end face shape
The picture comes from the Internet

The arrangement of the carbides of the DTH drill bit mainly depends on the shape of the end face, which directly affects the energy transfer efficiency and strength of the DTH drill bit. The end face shape of the DTH bit contains four types: flat face, convex face, tower type face, and concave face.

1. Flat face drill bits have buttons arranged on the end face perpendicular to the center line of the drill bit, and the gauge button is installed on the beveled surface with a certain inclination angle, which can effectively scrape the rock. It has a simple structure, is easy to process, has a high drilling speed, and is suitable for medium-strength rock formations.

2. Convex drill bits are a convex shape in the middle, which aims to reduce the stress of the gauge button and facilitate the centering of the drilling holes. The end face of the drill head is rounded and has the characteristics of self-sharpening, high speed, and smooth drilling speed, but it is more difficult to process than the flat drill bit, and the buttons wear faster and are suitable for hard strata.

3. Tower type face drill bits are center-leading guide reaming, with buttons arranged at the front end of the drill bit, centering at the front end to maintain the aperture and opening up a free center surface, which can effectively increase the rock drilling speed. But this structure is comparatively complicated, and the carbides of the leading end are easy to wear, and the over-front end of the drill bit is easy to break, so the service life is short.

4. Concave drill bits are a concave shape in the middle, which can produce a central rock pillar with a centering effect during drilling, effectively pre-exhaust holding the drilling from tilting, and the drill frame has high strength. However, the rotary torque of the drill bit is relatively low, and it can be challenging to remove rock chips while drilling, so it is suitable for large-diameter DTH hammers.

The above is all about the main structure shape of the DTH drill bit. The main structure shape of the DTH drill bit not only affects the strength and durability of the drill bit but also affects its performance in transmitting pressure in the formation and cutting rock. The factors affecting the main structure shape of the DTH drill bit include geological conditions, the target depth, and the working environment. Therefore, when designing a DTH drill bit, the above factors need to be considered, and select the most suitable main structure shape based on the specific application scenario. In conclusion, the main structure shape of the DTH drill bit has a significant impact on its performance. By selecting the main structure shape rationally, one can improve the efficiency and accuracy of the DTH drill bit for geological exploration and mineral mining.
