Rock Drill Bit Sizes: Finding the Right Diameter for Every Formation

Introduction #

Rock drill bit size is more than a simple dimensional parameter — it directly determines drilling performance, energy transfer efficiency, and overall cost per meter.

An incorrect bit diameter can lead to under-gauge holes, unstable borehole walls, excessive deviation, and inefficient fragmentation — particularly in deep-hole drilling operations where stability and precision are critical.

In modern mining, quarrying, tunneling, and construction projects, selecting the correct rock drill bit size is essential for maximizing drilling efficiency, extending tool life, and reducing total operational costs.

What Are Rock Drill Bit Sizes? #

Definition of Rock Drill Bit Size #

Rock drill bit size refers primarily to the cutting diameter of the drill bit — the outermost measurement across the gauge buttons that determines the final hole diameter. It is typically expressed in millimeters (mm) or inches (“).

In drilling operations, the bit diameter defines the size of the borehole and directly influences blasting design, anchoring systems, and casing requirements.

Key Dimensions of a Rock Drill Bit #

Although diameter is the most referenced specification, several critical dimensions define a rock drill bit:

Diameter (Cutting Size) #

The effective drilling diameter is measured across the gauge buttons. This determines the final hole size.

Bit Length #

The overall length of the bit affects stability, guidance, and wear distribution.

Shank Size #

The rear connection that interfaces with the drill rod or DTH hammer. Common examples include R32, T38, T45, T51 (Top Hammer drill bit), and DTH hammer sizes (3″, 4″, 5″, etc.).

Thread Type/Taper Degree #

Defines compatibility with drill rods. Incorrect thread/taper matching can cause energy loss and premature wear.

Each of these dimensions must be compatible with the drilling system to ensure efficient energy transfer.

Difference Between Bit Diameter and Shank Size #

This is a common point of confusion.

• Bit Diameter determines the size of the hole being drilled.
• Shank Size (or Thread Type) determines the connection between the bit and the drilling equipment.

For example, a T45 thread bit may be available in multiple diameters (e.g., 76 mm, 89 mm, 102 mm). The thread defines compatibility, while the diameter defines the hole size.

In short:

Thread size = connection compatibility

Bit diameter = hole dimension

Why Diameter Matters in Drilling Efficiency #

The drill bit diameter directly affects how impact energy is distributed across the rock face.

• A larger diameter spreads impact force over a wider surface area, requiring more power to maintain penetration rate.
• A smaller diameter concentrates energy, often resulting in faster penetration but smaller hole volume.

If the diameter does not match hammer output or rock hardness:

• Energy transfer efficiency decreases
• Penetration rate drops
• Vibration increases
• Tool wear accelerates

Proper diameter selection ensures optimal balance between productivity and durability.

How Rock Drill Bit Size Affects Hole Quality and Cost per Meter #

Bit size influences not only drilling speed but also overall project economics.

Hole Quality #

Correct diameter ensures:

• Accurate burden and spacing
• Reduced deviation
• Stable borehole walls

Cost per Meter #

Incorrect sizing can lead to:

• Slower drilling cycles
• Increased bit replacement frequency
• Additional re-drilling due to deviation

In large-scale mining and quarry operations, even small diameter mismatches can significantly increase total drilling cost.

Common Rock Drill Bit Size Standards and Measurement Systems #

Understanding rock drill bit size standards is essential for ensuring equipment compatibility, international procurement accuracy, and operational efficiency. Different regions and drilling systems may follow different measurement and threading standards.

Imperial vs. Metric Sizing Systems #

Rock drill bit sizes are expressed in two primary measurement systems:

Metric System (mm) #

• Most commonly used worldwide in mining and construction industries.
• Standard in Europe, Asia, Australia, and most international projects.
• Example: 76 mm, 89 mm, 115 mm, 165 mm.

Imperial System (inches) #

• Common in North America and some oilfield-related drilling sectors.
• Example: 3″, 3.5″, 4″, 6″, 8″.

In DTH drilling, DTH hammer sizes are often referred to in inches (e.g., 4″ hammer), while the actual bit diameter may still be specified in millimeters.

For international projects, accurate conversion between mm and inches is critical to prevent specification errors and procurement delays.

Major Industry Standards: API, ISO, ANSI, DIN, BS #

Different standards organizations define dimensional tolerances, thread profiles, and material specifications.

API (American Petroleum Institute) #

• Widely used in oilfield and deep drilling applications.
• Defines thread connections and dimensional tolerances for certain drilling components.

ISO (International Organization for Standardization) #

• Provides internationally harmonized specifications.
• Increasingly referenced in global mining projects.

ANSI (American National Standards Institute) #

• Common in U.S.-based industrial and construction equipment.

DIN (Deutsches Institut für Normung) #

• German standards are frequently used in European engineering sectors.

BS (British Standards) #

• Historically important in Commonwealth countries.

While top hammer and DTH drill bits are often manufacturer-specific in design, they typically align with internationally recognized dimensional and thread standards to ensure cross-brand compatibility.

Thread Standards (R, T, ST, etc.) and Their Impact on Compatibility #

Thread type is one of the most critical compatibility factors in rock drilling systems.

Common thread standards include:

R Thread (R25, R28, R32, R38) #

• Often used in smaller diameter top hammer drilling.

T Thread (T38, T45, T51, T60) #

• Modern trapezoidal thread design.
• Provides stronger connection and better energy transfer.
• Widely used in medium to heavy-duty mining and quarry drilling.

ST Thread (ST58, ST68) #

• Heavy-duty thread system for large diameter drilling.
• Designed for high-impact energy transmission.

Thread selection directly affects:

• Torque transmission capacity
• Impact energy efficiency
• Connection stability
• Risk of thread wear or failure

Using mismatched thread types can result in poor energy transfer, premature thread damage, or unsafe drilling conditions.

In summary:

Diameter determines hole size.

Thread type determines mechanical compatibility.

Standards ensure global interchangeability.

Understanding both measurement systems and thread standards is essential when sourcing rock drill bits for international mining and construction projects.

Standard Rock Drill Bit Sizes (mm & inch Chart) #

Rock drill bit sizes vary depending on drilling method, equipment power, and application type.

Top Hammer Drill Bit Sizes #

Top hammer drill bits are commonly used in quarrying, tunneling, and small-to-medium mining operations. They typically cover small to medium diameter holes.

Common Top Hammer Drill Bit Diameter Ranges #

Diameter (mm)	Diameter (inch)	Typical Application
33–45 mm	1.3–1.75”	Small bench drilling, bolt holes
48–64 mm	1.9–2.5”	Quarry production, tunneling
70–89 mm	2.75–3.5”	Large production holes

Top hammer drill bits are generally more suitable for shallow to medium-depth drilling where precision and high penetration rates are required.

Common Thread-Based Size Ranges #

Thread type determines compatibility with drill rods, but each thread system supports multiple bit diameters.

T38 Bit Sizes

• Typical diameter range: 64–89 mm
• Common applications: quarry bench drilling, small-scale mining
• Balanced between penetration rate and hole stability

T45 Bit Sizes

• Typical diameter range: 76–102 mm
• Used for medium-duty production drilling
• Suitable for harder rock formations

T51 Bit Sizes

• Typical diameter range: 89–127 mm
• Heavy-duty top hammer drilling
• Used in larger bench and surface mining applications

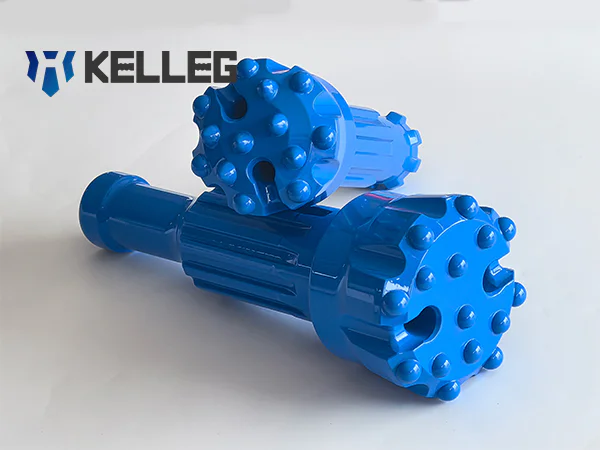

DTH Drill Bit Sizes #

DTH drill bits are designed for larger diameter and deeper holes. The DTH hammer is located directly behind the bit, improving energy efficiency at depth.

Standard DTH Bit Diameter Range #

DTH Hammer Size	Bit Diameter Range
2” DTH	65–76 mm
3” DTH	85–105 mm
4” DTH	110–140 mm
5” DTH	140–165 mm
6” DTH	165–203 mm
8” DTH	203–254 mm

DTH Hammer and Bit Size Matching #

In DTH drilling tools, the bit diameter must match the hammer size.

For example:

• A 4” DTH hammer typically operates with 110–140 mm bits
• A 6” DTH hammer supports 165–203 mm bits

Why DTH Bits Diameters Are Larger Than Top Hammer Drill Bits #

DTH drilling typically handles larger diameters for several reasons:

• Direct Impact Energy Transfer: The DTH hammer is located directly above the bit, minimizing energy loss along the drill string.
• Better Performance in Deep Holes: Top hammer drilling tools lose energy with increasing depth due to rod vibration and friction, while DTH drilling tools maintain a consistent impact force.
• Production Requirements: Large-scale mining and quarry operations require larger diameter holes to improve fragmentation efficiency.
• Improved Hole Straightness: DTH drilling tools provide better alignment in deep drilling, making them ideal for production and water well drilling.

In summary:

• Top Hammer drill bit → Smaller diameters, higher speed, shallow to medium depth
• DTH bit→ Larger diameters, deeper holes, better straightness

Roller Cone Bit Sizes #

Roller cone bits are widely used in water well drilling, oil & gas drilling, geothermal wells, and large-diameter production holes. Their sizes are standardized according to API specifications, and selection is strongly influenced by formation type and IADC classification.

Common Roller Cone Bit Diameter Ranges #

Bit Dia.	mm	IADC	Suitable Conditions	Pin Connection
6 1/4″	159 mm	412	Very soft formations	3 1/2″ API
6 1/4″	159 mm	732	Hard & abrasive formations	3 1/2″ API
7 7/8″	200 mm	412–845	Soft to extremely hard formations	4 1/2″ API
9″	229 mm	412–635	Very soft to medium-hard	4 1/2″ API
9 7/8″	251 mm	415–735	Soft to hard abrasive	6 5/8″ API
10 5/8″	270 mm	415–715	Very soft to medium-hard	6 5/8″ API

Understanding IADC Codes #

The IADC (International Association of Drilling Contractors) code defines:

• First digit → Formation hardness
• Second digit → Formation characteristics
• Third digit → Bearing & seal type

Example:

• 412 → Very soft formation
• 635 → Medium-hard abrasive formation
• 735 → Hard abrasive formation

Correct IADC selection ensures optimal cutting structure performance and extended bit life.

PDC Bit Sizes #

PDC (Polycrystalline Diamond Compact) bits are primarily used in oil & gas drilling, geothermal wells, and deep exploration projects. Unlike impact-based systems, PDC bits operate on a shear-cutting action.

They are manufactured in standardized sizes to match casing programs and drilling phases.

Common PDC Bit Diameter Ranges #

Bit Size (inches)	Decimal Size	Common Application
3 7/8″	3.875	Surface sections
4 1/4″	4.25	Surface sections
4 3/4″	4.75	Intermediate sections
5 3/8″	5.375	Intermediate drilling
6 1/4″	6.25	Intermediate sections
6 3/4″	6.75	Intermediate drilling
7 7/8″	7.875	Production sections
8 3/4″	8.75	Production drilling
9 7/8″	9.75	Production drilling
12 1/4″	12.25	Deep wells
17 1/2″	17.5	Deep well sections
26″	26	Large surface casing

Quick System Comparison #

Bit Type	Typical Diameter Range	Best For	Energy Mechanism
Top Hammer drill bit	33–127 mm	Quarry, tunneling	Percussion (surface impact)
DTH bit	65–254 mm	Mining, deep blasting	Downhole percussion
Roller Cone bit	159–270 mm+	Water well, oil drilling	Crushing & rolling
PDC bit	3 7/8″–26″	Oil & gas, deep wells	Shear cutting

How to Choose the Right Rock Drill Bit Size #

Selecting the correct rock drill bit size is not only about matching the diameter — it requires evaluating the drilling purpose, formation characteristics, equipment compatibility, and hole-cleaning efficiency. The wrong choice can reduce penetration rate, increase wear, and raise the cost per meter.

Define the Hole Purpose #

The first step is understanding why the hole is being drilled, as different applications require different diameters.

Mining & Quarrying #

• Diameter affects drilling design
• Larger holes improve fragmentation but require higher energy
• Typical range: 64–165 mm (Top Hammer drill bit or DTH bit)

Tunneling #

• Precision and hole straightness are critical
• Smaller diameters: 33–51 mm

Water Well & Geothermal Wells #

• Large diameter required for casing installation
• Often 140 mm and above (DTH bit or Roller Cone bit)

Oil & Gas Wells #

• Diameter determined by casing program
• PDC bit and Roller Cone bit are commonly used

Evaluate Rock Conditions and Drilling Method #

Formation characteristics directly influence bit size and bit face design.

Rock Hardness & Abrasiveness #

• Soft rock
• Hard rock
• Abrasive formations

Oversized bits in hard formations can reduce energy concentration and slow penetration.

Drilling Depth #

• Shallow holes → Top Hammer drill bit suitable
• Deep holes → DTH bit provides better straightness and consistent impact energy

As depth increases, energy loss in top hammer systems increases due to rod vibration.

Bit Face Design (Critical for Performance) #

Bit face shape affects rock breaking efficiency and hole deviation:

Flat Face

• Suitable for hard and abrasive rock
• High drilling speed
• Low-Impact Wear

Concave Face

• Best for medium-hard formations
• Suitable for Diverse Rock Formations
• Excellent slag removal effect.

Convex Face

• Higher penetration in soft to medium rock
• Less resistant to abrasive formations

Bit diameter and face design must be selected together for optimal results.

Match Bit Size to Drill Rig Specifications #

The drill rig determines maximum allowable diameter and energy output.

Check the following:

• DTH hammer size (for DTH drilling)
• Shank/thread type (R32, T38, T45, T51, API, etc.)
• Maximum torque capacity
• Compressor air capacity (for DTH drilling)

Consider Flushing Requirements #

Flushing (air or fluid circulation) is critical for removing cuttings from the hole.

The selected bit diameter must allow sufficient annular space between the drill string and the borehole wall.

If the annular space is too small:

• Cuttings accumulate
• Bit regrinding increases
• Hole temperature rises
• Penetration rate decreases

If properly sized:

• Cuttings are evacuated efficiently
• Bit wear is reduced
• Hole quality improves
• Drilling cost per meter decreases

In DTH drilling, especially, adequate airflow volume must match both hammer size and bit diameter to maintain optimal cleaning efficiency.

Rock Drill Bit Size Tolerance & Regrinding #

Rock drill bit diameter does not remain constant throughout its service life. Wear, regrinding, and formation abrasiveness gradually reduce the effective cutting size. Understanding diameter tolerance is essential for maintaining hole quality and cost control.

Diameter Loss After Wear #

During drilling, gauge buttons and outer cutting structures are exposed to the highest abrasion. Over time:

• Gauge buttons wear down
• Carbide height reduces
• Effective hole diameter decreases

Even a small reduction (1–2 mm) can significantly affect drilling design or precision.

In high-volume mining operations, under-gauge drilling can accumulate into major production losses.

Importance of Gauge Buttons #

Gauge buttons are positioned along the outer edge of the bit and are responsible for:

• Maintaining hole diameter
• Stabilizing the borehole wall
• Reducing deviation
• Protecting the bit body from excessive wear

If gauge buttons wear prematurely:

• Hole diameter shrinks
• Re-drilling may be required
• Drilling results become inconsistent

Proper gauge design and timely regrinding are critical for maintaining dimensional accuracy.

When to Replace vs. Regrind #

Regrinding can restore cutting efficiency, but cannot fully recover lost diameter.

Regrind When: #

• Buttons are worn but not cracked
• Gauge reduction is within acceptable tolerance
• Bit body is structurally intact

Replace When: #

• Diameter falls below operational tolerance
• Gauge buttons are severely worn or broken
• Bit body shows cracking or deformation

As a general rule, if under-gauge wear begins affecting hole quality or drilling stability, replacement is recommended.

How to Measure and Verify Rock Drill Bit Sizes #

Accurate measurement ensures compliance with drilling specifications and prevents compatibility issues.

Verification should be conducted:

• Before first use
• After regrinding
• Periodically during operation

Tools Used for Measurement #

Calipers (Vernier or Digital) #

Used to measure overall diameter across gauge buttons.

Bit Gauges (Ring Gauge or Template Gauge) #

Provide quick pass/fail verification for diameter tolerance.

Thread Gauges #

Used to confirm thread type and pitch accuracy (R, T, API, etc.).

Using proper measurement tools reduces the risk of mismatch between bit, rod, and hammer.

Step-by-Step Measurement Guide #

Step 1: Clean the Bit #

Remove dust, debris, and metal fragments to ensure accurate contact points.

Step 2: Measure Across Gauge Buttons #

Use calipers to measure the maximum distance across opposite gauge buttons.

Step 3: Check Multiple Points #

Rotate the bit and measure at different positions to detect uneven wear.

Step 4: Verify Thread Compatibility #

Use a thread gauge to confirm thread type and pitch match drilling equipment.

Step 5: Compare with Nominal Specification #

Determine whether the diameter remains within acceptable tolerance limits.

Common Measurement Mistakes to Avoid #

• Measuring across worn inner buttons instead of gauge buttons
• Ignoring uneven wear around the circumference
• Failing to clean debris before measurement
• Confusing thread type with diameter size
• Overlooking tolerance limits after multiple regrinds

Regular inspection and correct measurement practices help maintain drilling efficiency, safety, and cost control.

Custom Rock Drill Bit Sizes (OEM Manufacturing) #

While most rock drill bit sizes follow standard diameter ranges, many mining, tunneling, geothermal, and oilfield projects require custom-engineered solutions to meet specific geological and operational demands.

Non-Standard Diameters #

Custom rock drill bits can be manufactured in non-standard diameters to meet:

• Specialized drilling design requirements
• Matching with existing casing systems
• Replacement of discontinued legacy sizes

In certain mining operations, even a 2–3 mm diameter adjustment can improve fragmentation efficiency.

OEM manufacturers can typically produce custom diameters within defined tolerance limits while maintaining thread compatibility (R, T, ST, API, etc.).

Special Gauge Protection Design #

Gauge protection plays a critical role in maintaining hole diameter and extending tool life. Customization options may include:

• Reinforced gauge button layout
• Increased gauge button height
• Carbide grade upgrades for abrasive formations
• Anti-wear inserts or hardfacing protection
• Optimized flushing hole positioning

Enhanced gauge protection is especially important in:

• Hard and abrasive rock formations
• High-impact DTH applications
• Deep-hole production drilling

Proper gauge engineering reduces under-gauge wear and stabilizes borehole walls.

Application-Based Customization #

Custom rock drill bits can be engineered according to:

Formation Characteristics #

• Soft, fractured, or highly abrasive rock
• High compressive strength formations
• Variable geological layers

Drilling Method #

• Top Hammer drilling
• DTH drilling
• Rotary drilling

Operational Parameters #

• Compressor capacity
• Hammer energy output
• Rotation speed (RPM)
• Weight on bit (WOB)

Customization may involve adjusting: #

• Bit face design (Flat, Concave, Convex)
• Button shape (Spherical, Ballistic, Parabolic)
• Flushing system configuration
• Bit body material strength

Application-based design ensures maximum energy transfer efficiency and longer service life.

Lead Time and MOQ Considerations #

Custom manufacturing requires additional production planning.

Typical considerations include:

• Engineering confirmation of drawings
• Sample approval (if required)
• Production lead time (usually longer than standard stock items)
• Minimum order quantity (MOQ), depending on diameter and material grade

For distributors and large mining projects, OEM production often reduces long-term cost per meter by improving drilling efficiency and extending bit lifespan.

When Should You Consider Custom Rock Drill Bit Sizes? #

• Standard sizes do not match your blasting design
• Excessive under-gauge wear occurs in your formation
• You require performance optimization for specific drilling conditions
• You are building a private-label or branded drilling tool line

OEM customization transforms rock drill bits from standard consumables into performance-optimized drilling solutions.

Conclusion #

Choosing the right rock drill bit size is a critical factor in drilling efficiency, hole quality, and operational cost. From Top Hammer drill bits and DTH bits to Roller Cone bits and PDC bits, understanding diameter ranges, thread standards, gauge protection, and application-specific requirements ensures:

• Maximum rate of penetration (ROP)
• Stable and accurate hole geometry
• Extended tool life and reduced maintenance costs
• Optimal energy transfer and drilling performance

Regular inspection, proper measurement, and timely regrinding or replacement help maintain bit performance over its service life. For specialized projects, custom OEM bit designs provide tailored solutions for non-standard diameters, extreme formations, or unique operational conditions.

Selecting the right rock drill bit size is not just a technical choice — it’s a strategic decision that can save time, reduce costs, and improve project outcomes.

Contact us today to discuss your drilling requirements and explore customized solutions that match your formation, rig specifications, and project goals.
