Threaded drill bits are essential tools in the rock drilling industry, prized for their efficiency and durability in penetrating tough rock formations. These specialized rock drilling tools, known as threaded drill bits, are designed to endure the demanding conditions of hard rock excavation, making them indispensable in mining, construction, quarrying, and geotechnical exploration. Their precision and power enable controlled drilling, ensuring optimal results in challenging environments. This article provides a comprehensive overview of threaded drill bits, detailing their definition, types, applications, selection criteria, usage guidelines, and maintenance practices to highlight their critical role in modern rock drilling operations.
What is a Threaded Drill Bit?
A threaded drill bit is a rock drilling tool attached to the end of a drill rod, engineered to break through hard rock formations with high efficiency. It features a robust steel body embedded with tungsten carbide buttons or cutting edges, strategically arranged to maximize cutting performance. The threaded design ensures a secure connection to the drill rod, providing stability during high-impact drilling. Threaded drill bits are highly versatile, capable of performing in diverse geological conditions, from soft sedimentary rock to hard granite. Their durability and adaptability make them suitable for a variety of harsh rock drilling environments and provide consistent performance in a variety of applications.
Types of Threaded Drill Bits
Threaded drill bits are categorized based on their design and intended application, each optimized for specific rock characteristics and blasting requirements. The main types include:
Button Bits: Equipped with spherical or ballistic tungsten carbide buttons, these bits excel in medium to hard rock formations, offering superior cutting efficiency and longevity.
Cross Bits: Featuring a cross-shaped cutting face, these bits are ideal for brittle or fractured rock, providing rapid penetration and effective rock fragmentation.
X-Type Bits: With an X-shaped cutting pattern, these bits offer balanced performance in medium-hard and abrasive conditions, ensuring stability and versatility.
Chisel Bits: Designed with a single, flat cutting edge, chisel bits are used in softer rock or for precision drilling tasks requiring controlled drilling. Each type is tailored to specific rock hardness, abrasiveness, and fracturing patterns, allowing operators to select the most suitable bit for their project to achieve optimal outcomes.

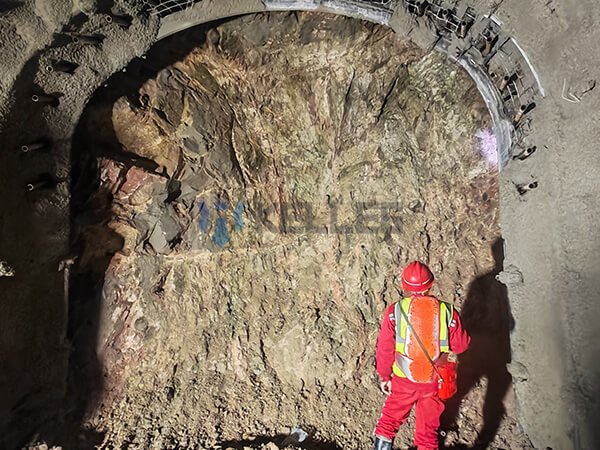

Uses of Threaded Drill Bits
Threaded drill bits are employed across a wide range of industries due to their ability to efficiently drill through challenging materials. Their key applications include:
Mining: Threaded drill bits are used to drill blast holes for extracting minerals such as gold, copper, iron ore, and coal. They enable precise hole placement, maximizing mineral recovery and minimizing waste.
Construction: These bits are critical for foundation drilling, tunneling, and road construction, where they facilitate the creation of stable structures in hard rock environments, such as urban infrastructure projects or mountain road expansions.
Quarrying: Threaded drill bits are used to extract stone blocks for construction, landscaping, and decorative purposes, ensuring clean cuts and high productivity in granite or marble quarries.
How to Choose the Right Threaded Drill Bit
Selecting the appropriate threaded drill bit is essential for achieving optimal performance and cost efficiency. Key considerations include:
Rock Type: Button bits are ideal for medium to hard rock, cross bits excel in brittle formations, and chisel bits suit softer rock or precision tasks.
Drilling Method: The choice between top hammer and down-the-hole (DTH) drilling significantly impacts bit selection, as each method requires specific bit designs for efficient energy transfer.
Bit Size: The bit diameter, typically ranging from 45mm to 152mm, must align with the drill rig and project specifications to ensure compatibility and performance.
Thread Type: Common thread types like R32. T38. or T45 must match the drill rod to ensure a secure connection and efficient power transmission.
Operating Conditions: Factors such as rock abrasiveness, water presence, drilling depth, and environmental conditions (e.g., temperature, dust, or vibration) influence bit choice. By carefully evaluating these factors, operators can select a threaded drill bit that maximizes drilling efficiency, minimizes wear, and reduces operational costs, ensuring project success.
Using Threaded Drill Bits
Proper usage of threaded drill bits is critical for ensuring safety, efficiency, and longevity. The process involves:
Setup: Securely connect the bit to the drill rod using the appropriate thread type to prevent detachment during high-impact operations.
Drilling: Adjust the drill rig’s rotation speed, feed pressure, and percussion force based on the rock’s hardness, density, and fracturing characteristics.
Monitoring: Continuously monitor bit performance, checking for signs of wear, overheating, or misalignment, and adjust parameters to prevent damage or inefficiencies.
Safety: Operators must wear protective gear, including helmets, gloves, safety glasses, and ear protection, and adhere to strict operational guidelines to minimize risks. Proper usage enhances drilling speed, improves hole quality, and extends the bit’s service life, contributing to overall project efficiency and safety.

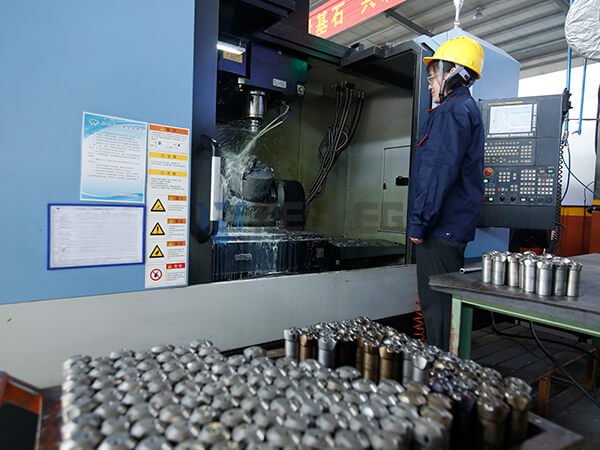

Maintenance of Threaded Drill Bits
Regular maintenance is vital to keep threaded drill bits in optimal condition and prevent costly downtime. Key maintenance practices include:
Cleaning: Thoroughly remove rock debris, dust, and mud after each use to prevent clogging and ensure smooth operation in subsequent drilling tasks.
Inspection: Regularly inspect the bit for worn or damaged tungsten carbide buttons, cracks in the steel body, or thread wear, and replace components promptly to avoid failures.
Sharpening: Regrind the buttons or cutting edges after approximately 100–200 meters of drilling to restore cutting efficiency, using specialized grinding equipment for precision.
Storage: Store bits in a dry, cool, and dust-free environment to prevent corrosion and damage to the tungsten carbide buttons or steel body. Implementing a consistent maintenance schedule reduces wear-related failures, enhances drilling performance, and maximizes the return on investment for threaded drill bits.
Conclusion
Threaded drill bits are indispensable in the rock drilling industry, offering unparalleled efficiency, durability, and versatility in mining, construction, quarrying, and geotechnical exploration. By understanding their types, applications, and proper usage, operators can optimize drilling performance and achieve cost-effective outcomes. Careful selection of the right bit, combined with diligent maintenance practices, ensures reliability, longevity, and consistent results, solidifying the role of threaded drill bits as a cornerstone of modern rock drilling operations.
