What are Rock Bolts Used for?

Table of Contents

Rock bolts play a vital role in today’s construction and engineering designs. Its existence and wide application not only provide a strong guarantee for project safety but also improve the stability and reliability of projects with its unique advantages in geotechnical engineering, civil engineering, mining engineering, and other fields.

What are rock bolts?

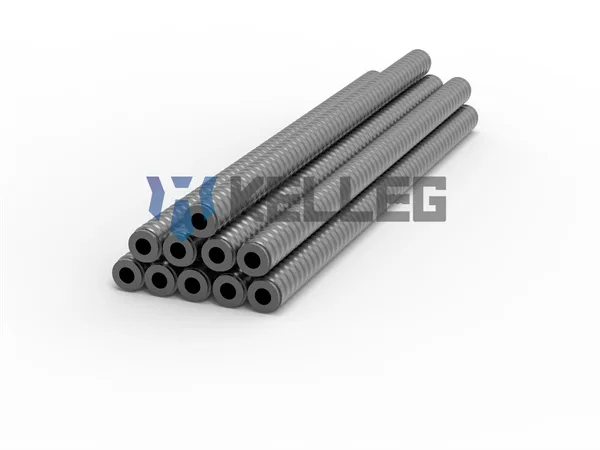

Hollow anchor bar

Rock bolts are the fundamental part of tunnel support in contemporary coal mines. They reinforce the surrounding rocks of the tunnel and play a supporting role. As a tensile member deep into the stratum, one end of the rock bolt is connected with the engineering structure, and the other end is deep into the stratum, and the whole rock bolt contains a free section and an anchoring section. The free section is the area where the tension force at the rock bolt head is transmitted to the anchorage, and its function is to apply prestressing stress to the rock bolt. The anchoring section is the area where the cement paste binds the prestressing tendon to the soil layer, and its function is to increase the bond friction between the anchor solid and the soil layer, increase the pressure-bearing effect of the anchor solid, and transmit the tension force of the free section to the depth of the soil body.

Classification of rock bolts

Split Set

According to the material, there are wooden bolts, steel anchors, GFRP bolts.

According to material strength, they are ordinary bolts, high-strength bolts, and ultra-high-strength bolts.

According to the anchoring length, they are end bolts, extended bolts, and full-length bolts.

According to the anchoring method, they are resin bolts, double-fast cement bolts, and inverted wedge metal bolts.

According to the structure, they are solid bolts and hollow grouting bolts.

The function of the rock bolt

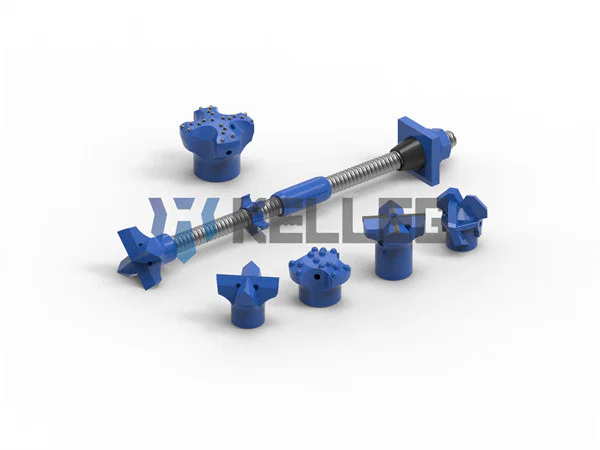

SDA bolt

Reinforcement and stability: the rock bolts penetrate deep into the rock and soil mass to generate sufficient pull-out force so that the rock and soil mass can remain stable when subjected to external loads and prevent collapse or sliding. This reinforcement and stabilizing effect are widely available in civil engineering, slope management, foundation pit support, and other fields.

Suspension function: the rock bolts can withstand the load transmitted by the sling, suspending the unstable or slid rock and soil mass on the stable rock and soil mass, thereby improving the stability of the entire rock and soil mass.

Function of composite beam: by setting rock bolts in the layered rock and soil mass, each layer of rock and soil mass can be combined into a whole to form an overall structure similar to a beam, thereby improving the load-bearing capacity of the rock and soil mass.

Extrusion reinforcement: rock bolts can squeeze reinforcement to the broken rock and soil body when passing through the crushed rock and soil body to improve the overall strength and stability.

Application fields of rock bolts

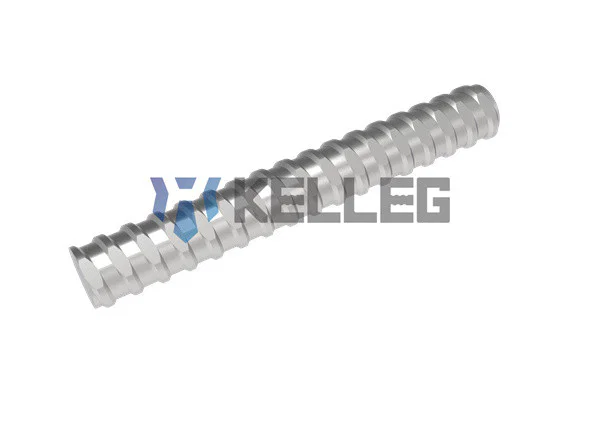

threaded bar

Geotechnical engineering

In geotechnical engineering, rock bolts are widely available in slope management, foundation pit support, tunnel support, and other fields. It can effectively improve the stability of rock and soil and prevent collapse and sliding.

Civil engineering

In civil engineering, rock bolts are available for foundation treatment and reinforcement of bridges and buildings. It can improve the bearing capacity of the foundation and prevent the deformation and damage of the building due to external forces.

Mining engineering

In mining engineering, rock bolts are available for roof support and surrounding rock reinforcement of tunnels. It can effectively improve the stability of the tunnel and ensure the safe production of miners.

Other areas

In addition to the above fields, rock bolts are widely available in hydropower engineering, railway and highway engineering, and port and terminal engineering.

To sum up, no matter which field it is in, rock bolts can exert their unique advantages and provide a strong guarantee for the safety and stability of the project.

Generally speaking, rock bolts play a significant role in the design process of construction and various engineering projects. Its practical application not only significantly enhances the stability and durability of buildings and structures but also provides necessary safety protection for people’s daily lives in many scenarios. However, it is worth noting that although rock bolts have many excellent properties and a wide range of applications, their specific uses must still fully consider various complex environmental constraints. For example, soil type, moisture, density, and groundwater level will all affect the anchoring effect of the rock bolt. In addition, the optimized design plan and high-quality construction of rock bolts must also be based on specific engineering conditions and technical specifications for in-depth analysis and precise calculations to select the most appropriate rock bolt materials and design parameters to ensure the safety and reliability of the entire project. With the continuous emergence of innovative achievements in science and technology and the development of new materials, the future design and construction process of the anchor will have perfect enhancement and improvement.
