In the world of rock drilling and mining, choosing the right drill rod can make or break your operation. Drill rods are essential tools that transmit rotational force and impact energy from the drill rig to the drill bit, allowing for efficient penetration into rock formations. Among the various types, MF rods (Male-Female) and MM rods (Male-Male) stand out as popular choices, each with unique designs tailored to specific needs. If you’re wondering about their applications in underground mining or tunneling, this guide breaks it down step by step. We’ll explore the differences and real-world scenarios to help you decide which one fits your project best.
What is an MF Rod?
An MF rod, short for Male-Female rod, features a male thread on one end and a female thread on the other. This design allows rods to connect directly to each other without needing an additional coupling sleeve. Think of it like puzzle pieces that snap together seamlessly. Commonly available in threads like T38. T45. or R32. MF rods are engineered for high-performance drilling in demanding environments.
One key advantage of MF rods is their streamlined connection system. By eliminating the need for couplings, they reduce the overall weight of the drill string and minimize potential weak points where failures could occur. This makes them ideal for operations where speed and reliability are paramount. The T38 MF rod enables faster assembly and disassembly, saving valuable time on site in underground mining.
MF rods are typically made from high-strength alloy steel, often carburized or heat-treated for enhanced durability. Their lengths vary, but popular sizes include 3660mm or 4270mm, depending on the rig and application. The MF drill rod integrated threading reduces vibration and improves energy transfer to the drill bit, leading to better hole straightness and less deviation.

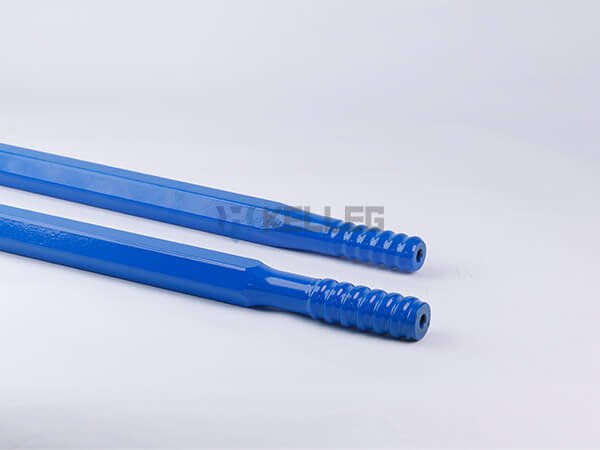

What is an MM Rod?
An MM rod, or Male-Male rod, has male threads on both ends. To connect two MM rods, you’ll need a separate coupling sleeve with female threads on both sides. This setup is more traditional and widely used in various drilling setups, especially where flexibility in rod length adjustments is needed.
MM rods are versatile and often come in standard threads like T38 or T51. They’re popular for bench drilling because the coupling sleeves allow for easy extension and customization of the drill rod string. Made from similar high-quality steel as MF rods, they undergo processes like normalization or quenching to withstand high-impact forces.
A notable feature of MM rods is their modularity. If a coupling sleeve wears out, you can replace just that part without discarding the entire rod, which can be cost-effective in the long run. However, this added component can introduce more points of potential failure, such as thread stripping or loosening under heavy vibration.
Key Differences Between MF Rods and MM Rods
When comparing MF rod vs MM rod, several factors come into play. Let’s dive into the main distinctions:
1. Connection Mechanism
The most obvious difference is how they link up. MF rods connect end-to-end directly (male to female), forming a rigid, coupling sleeves-free string. MM rods require a coupling sleeve, which adds an extra step but offers interchangeability.
2. Weight and Handling
Without coupling sleeves, MF rods are lighter overall, making them easier to handle in confined spaces like tunnels. This can reduce operator fatigue and improve safety in MF extension rod. MM rods, with their coupling sleeves, might add 10-20% more weight per connection, which accumulates in longer strings.
3. Efficiency and Performance
MF rods often provide better energy transmission due to fewer joints, leading to less energy loss and straighter holes. In tests, MF systems can achieve up to 15% higher penetration rates in hard rock. MM rods, while reliable, may experience more wear at the coupling points, potentially shortening lifespan in abrasive conditions.
4. Cost Implications
Initially, MF rods might cost more due to their integrated design, but they save on coupling sleeves and maintenance. MM rods are cheaper upfront, but factor in ongoing coupling sleeve replacements.
5. Durability and Maintenance
MF rods have fewer components, meaning less maintenance, but if the threads wear, the whole rod might need replacement. MM rods allow targeted repairs. The MF rod maintenance tips focus on regular thread cleaning and lubrication to prevent galling.
Other nuances include thread design: MF rods’ alternating threads reduce the risk of unscrewing under rotation, while MM rods rely on the coupling sleeve’s integrity.
Application Scenarios for MF Rods
MF rods shine in scenarios demanding efficiency and minimal downtime. Here are some prime examples:
• Underground Mining: In tight spaces like drift development, MF rod for deep hole drilling allows for rapid rod changes, boosting productivity.
• Tunneling and Infrastructure: The high-quality MF rod for tunneling their a lightweight design that aids in horizontal or inclined drilling in projects like subway expansions. The direct connection minimizes deviation, ensuring precise blast holes.
• Hydropower and Geotechnical Drilling: The T38 MF rod for hydropower station drilling, where water and vibration are factors, MF rods’ sealed connections resist corrosion better.
Overall, choose MF rods if your operation prioritizes speed, like in high-volume quarries or automated rigs.
Application Scenarios for MM Rods
MM rods are go-to for versatile, adaptable setups:
• Surface Drilling and Quarrying: The carburized MM rod for bench drilling, the ability to mix rod lengths with coupling sleeves makes them perfect for varying depths in open-pit mines.
• Exploration Drilling: For exploratory work where rod strings need frequent adjustments, MM rods offer flexibility without custom ordering.
• Heavy-Duty Blasting: In large-scale blasting, MM rods handle high torque well, especially with robust coupling sleeves.
If cost control and part replaceability are key, MM fits budget-conscious operations.
Making the Right Choice
MF Rod: Faster assembly, better efficiency, lighter weight. But higher initial cost, less flexible for repairs.
MM Rod: Modular, cost-effective, widely available. But more maintenance, potential energy loss.
In conclusion, the choice between MF and MM rods depends on your specific needs. Choose the MF rod for modern, high-performance long-hole drilling. For traditional, adaptable setups, the MM rod is the superior choice. Consult Kelleg for specifications tailored to your rig.
