Introduction
Drilling into rock is a fundamental operation across multiple industries, but not all rock types—or drilling challenges—are created equal. Choosing the right drilling method based on the specific geological conditions can significantly impact the success, cost, and efficiency of a project. The hardness, abrasiveness, fracturing, and moisture content of the rock directly influence which drilling techniques and tools should be used.
Selecting the wrong method may lead to premature tool wear, low penetration rates, and increased operational risks. On the other hand, a well-matched drilling strategy ensures optimal performance, improved safety, and reduced project timelines.
Rock drilling is the use of tools to break or drill rock and plays a critical role in various sectors, including mining, where it’s used for resource extraction; construction, where it’s essential for foundations, tunnels, and infrastructure; oil and gas, for accessing deep reservoirs; and geotechnical engineering, for subsurface investigation and stability analysis. Each of these industries encounters different rock formations and project goals, making it vital to understand which drilling approach works best for each scenario.
This article explores the major drilling methods used for different types of rocks, their applications, and practical tips for selecting the most effective technique based on ground conditions.
Basic principles and classification of rock drilling methods
Rock drilling methods primarily rely on the physical and mechanical properties of the rock, with the fundamental principle being the application of impact, cutting, and crushing forces to fracture the rock. There are two main categories of rock drilling based on the mode of action:
- Impact drilling: This is the most commonly employed rock drilling method. It involves using a drill bit to impact the rock, breaking it apart through successive impacts.
- Rotary rock drilling: Axial thrust is applied to the drill bit, which causes the drill blades to cut into the rock, and a rotational torque is applied to the drill bit so that the drill blade keeps cutting into the rock. This method uses a spiral drill rod to clear away the broken rock chips or debris automatically. As a result, as the drill bit advances and rotates, it creates a continuous, smooth borehole, making it well-suited for drilling blast holes and other applications in rock excavation.
The choice of the appropriate drilling method depends on the specific characteristics of the rock and the intended drilling objectives.
There are all kinds of rocks in nature, composition, structure, and other characteristics of different rocks are different.
Type of rock
Rocks can be divided into three categories according to their origin: igneous rocks, sedimentary rocks, and metamorphic rocks.
Igneous rock
Igneous rock is formed by magma cooling and consolidation. It is also called magmatic rock and is a hard and complete rock. Typical igneous rocks are granite and granodiorite.
These rocks are easier to drill by impact if they have not been severely fractured and weathered. They are generally too hard for rotary drilling except with heavy rigs with vertical pressure and torque, but drill bit wear is a serious problem.
Sedimentary rocks
Most sedimentary rocks have undergone cementation, compaction, and recrystallization. Representative sedimentary rocks are limestone and sandstone.
The hardness of limestone varies greatly. Hard limestone can be drilled with a pneumatic or heavy-duty rotary drill, while soft limestone is best drilled with a rotary drill.
Sandstone is an abrasive rock; rotary drilling rigs generally cannot be used, but it is easier to drill with a pneumatic rock drill.
Metamorphic rocks
Metamorphic rock is formed by igneous rock and sedimentary rock through metamorphism. A typical metamorphic rock is quartzite, which is formed by metamorphism of siliceous rock (pure SiO2). Generally, a pneumatic rock drill is used to drill.
The characteristics of rock, such as hardness and abrasion, determine the drillability, blastability, and drilling method of rock. So, rock drilling methods for different rocks.
Choosing the Right Drilling Method Based on Rock Conditions
Selecting the most suitable drilling method requires a thorough understanding of the geological environment and project requirements. A one-size-fits-all approach rarely works in rock drilling, as each rock type presents unique challenges that can impact tool selection, drilling efficiency, and overall project cost.
Key Decision-Making Criteria:
- Rock Strength and Structure
The hardness, brittleness, and degree of fracturing in rock determine how easily it can be penetrated. For example, soft, loosely consolidated rock may require auger or rotary drilling, while extremely hard or massive formations are better suited to DTH or diamond core drilling. - Depth and Diameter Requirements
Shallow boreholes for geotechnical sampling may only need auger or rotary drilling, whereas deep production holes in mining or oil & gas require more robust techniques like DTH or rotary with mud circulation. - Water Content and Borehole Stability
Water-saturated or unstable formations increase the risk of borehole collapse. In such cases, casing advancement systems, drilling fluids, or air-lift systems may be necessary to maintain borehole integrity. - Drilling Speed and Cost Constraints
While diamond core drilling offers precision and high-quality core samples, it is slower and more expensive. In contrast, rotary or DTH methods can provide higher penetration rates with reduced costs depending on the conditions.
Recommended drilling methods for different rocks

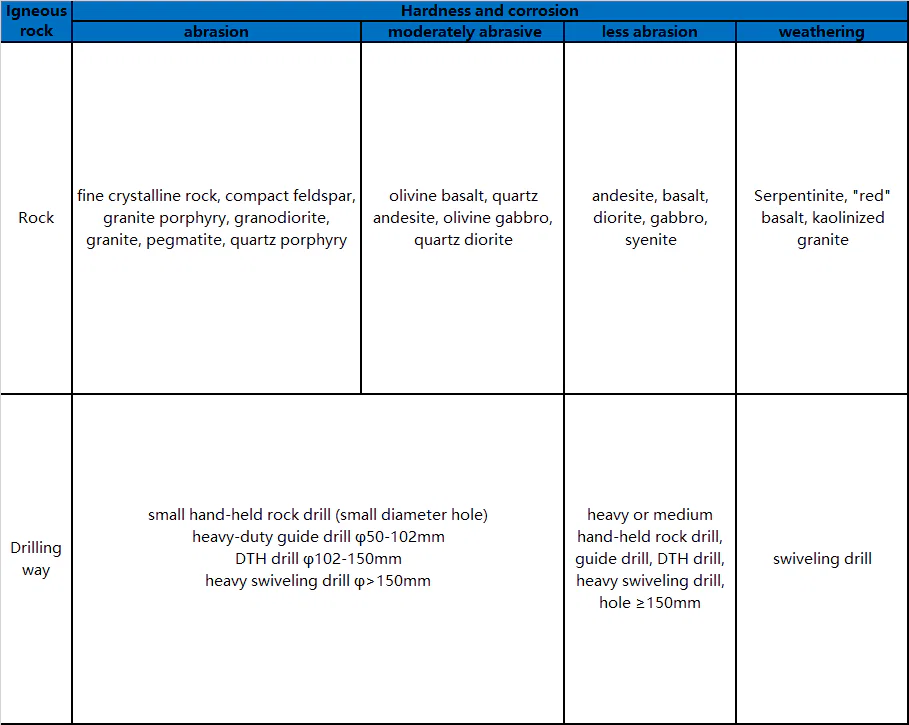

Igneous rock

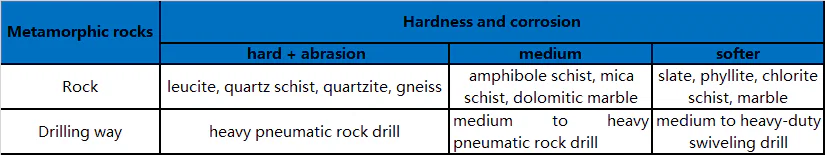

Metamorphic rocks

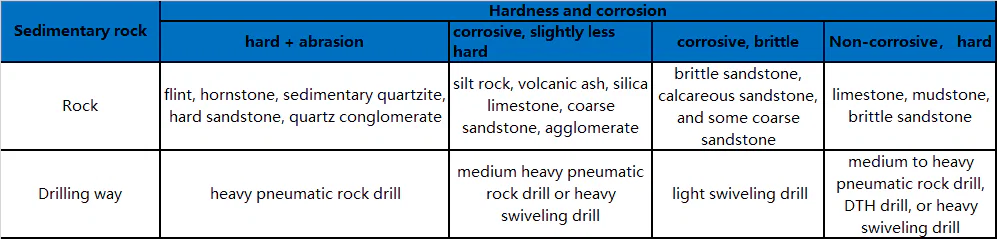

Sedimentary rock
Application scenarios and limitations of rock drilling methods
In practical applications, the choice of a rock drilling method needs to consider many factors, including rock type, project scale, construction conditions, and cost. Different scenarios come with distinct limitations for rock drilling methods. Therefore, when choosing a rock drilling method, it is vital to consider various factors, including engineering requirements, rock properties, and environmental considerations.
In some specific cases, the selection of rock drilling methods also needs to consider environmental protection and safety issues. In tunneling, it is crucial to consider precautions to prevent rockfall and dust accumulation to ensure the safety of the workers. In open pit mining, it is essential to consider the stability of the slopes and the appropriate methods of disposing of waste rock and tailings to minimize environmental impact.
The choice of rock drilling method is crucial in various fields, including mining, tunnel excavation, water conservancy projects, and more. Each rock type and drilling scenario comes with unique characteristics and requirements. Selecting the appropriate rock drilling method not only influences the progress and cost of a project but also plays a significant role in determining the project’s quality and its impact on the social and natural environment. To enhance project efficiency and quality and minimize environmental impact, we must bolster research and application of various rock drilling methods. A well-informed and adaptive choice of drilling method is essential for achieving project success and responsible environmental stewardship.
